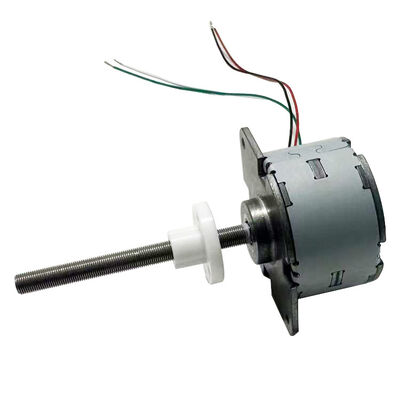

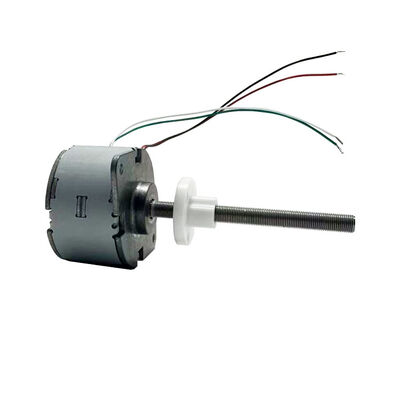

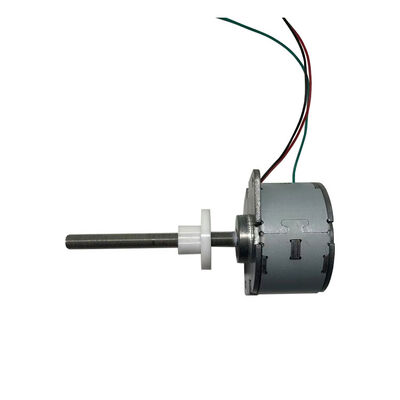

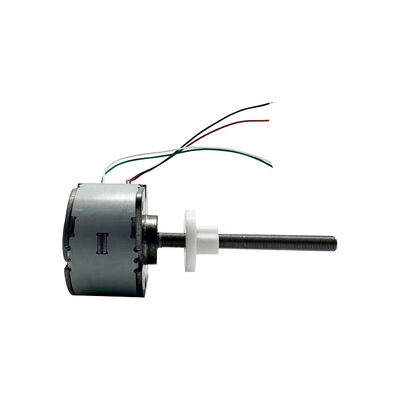

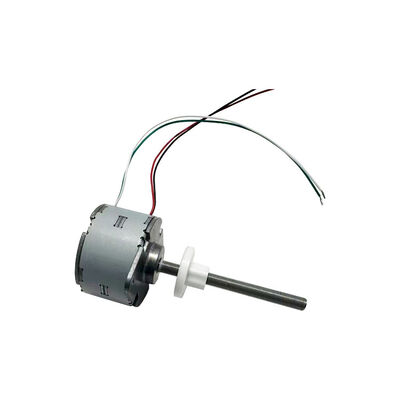

High torque 46mm diameter external drive linear motor with POM nut 24VDC linear motor

  • High torque 46mm diameter external drive linear motor with POM nut 24VDC linear motor
  • High torque 46mm diameter external drive linear motor with POM nut 24VDC linear motor
  • High torque 46mm diameter external drive linear motor with POM nut 24VDC linear motor
  • High torque 46mm diameter external drive linear motor with POM nut 24VDC linear motor
  • High torque 46mm diameter external drive linear motor with POM nut 24VDC linear motor
  • High torque 46mm diameter external drive linear motor with POM nut 24VDC linear motor
Place of Origin China
Brand Name VIC-TECH
Certification RoHS
Model Number K15PC34-0.5-05-13-001
Minimum Order Quantity 1Unit
Price $7.5~$30 /Unit
Packaging Details Standard export package, or can be customized
Delivery Time 15-30 work days
Payment Terms Western Union, T/T, L/C, MoneyGram
Supply Ability 100000 Units/year
Product Details
Resistance 33Ω±10% Phase 2
Type Permanent Magnet Holding Torque 5N
Step Angle(degrees) 18° Voltage 5V
Leave a Message
Product Description

External drive linear motor 12VDC high-precision motor

High torque 46mm diameter external drive linear motor with POM nut 24VDC linear motor 0

This is a linear stepper motor with a diameter of 46mm, designed specifically for high-precision linear motion. The installation hole spacing is 55.5mm, and the motor is equipped with nuts to adapt to the customer's docking parts
The motor is a 2-phase 4-wire bipolar stepper motor that can accurately control linear operation. The effective stroke of the screw can be customized according to the specific length required by the customer
The diameter of the screw is 6.35 millimeters, with a step size of 0.0127 millimeters, which means that for every step taken by the motor, its stroke is 0.6096 millimeters. This is crucial for high-precision control,





If you want to customize parameters such as coil resistance, cable length, etc., please feel free to contact us at any time.



Mechanical Dimension:MM

High torque 46mm diameter external drive linear motor with POM nut 24VDC linear motor 1









Technical Features

This product is a patented product of the company. It converts the rotation of the motor into a linear motion through the relative

movement of the internal rotor and the screw. It is mainly used in valve control, automatic buttons, medical equipment, textile

machines, robots and other related fields.
At the same time, the external wiring part can use four terminal posts (light pins) or connecting wires, or FPC FFC PCB, etc.

according to customer requirements.
The output part is linear.

Typical Applications

  • Medical Equipment

  • Automatic Control

  • 3D Printer

  • Precision Calibration

  • Precision Fluid Measurement

  • Precise Position Movement

Specifications

Product Name

PM15  linear stepper motor

Model

VSM36C-048S-0127-01

Resistance

5Ω±10%

Pull in frequency

200PPS

The MarkThrust

N at 5V 300PPS

Inductance

8.7REF (mH)

Mounting

rear axle

Mounting

20.5±0.1mm /rear axle

Insulation Class

class B

lead wrie

UL 1061 AWG26

OEM & ODM Srvice

Available



High torque 46mm diameter external drive linear motor with POM nut 24VDC linear motor 2

High torque 46mm diameter external drive linear motor with POM nut 24VDC linear motor 3









Customization service

The motor can customize the normal screw stroke,

Connectors and outlet boxes can be customized according to customer requirements



Competitive Advantage

  • High quality and the best price.

  • Fast deliver,storage company and rich inventory

  • Near Shanghai port, the traffic is very convenient.



High torque 46mm diameter external drive linear motor with POM nut 24VDC linear motor 4
