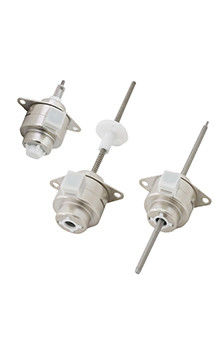

Through shaft 7.5 degree step angle permanent magnet stepper motor 25mm pm linear stepper motor supplier

  • Through shaft 7.5 degree step angle permanent magnet stepper motor 25mm pm linear stepper motor supplier
  • Through shaft 7.5 degree step angle permanent magnet stepper motor 25mm pm linear stepper motor supplier
  • Through shaft 7.5 degree step angle permanent magnet stepper motor 25mm pm linear stepper motor supplier
  • Through shaft 7.5 degree step angle permanent magnet stepper motor 25mm pm linear stepper motor supplier
  • Through shaft 7.5 degree step angle permanent magnet stepper motor 25mm pm linear stepper motor supplier
  • Through shaft 7.5 degree step angle permanent magnet stepper motor 25mm pm linear stepper motor supplier
Place of Origin China
Brand Name VIC-TECH
Certification RoHS
Model Number VSM25L-048S-0254-97-001
Minimum Order Quantity 1Unit
Price $6.5~$30/Unit
Packaging Details Standard export package, or can be customized
Delivery Time 15-30 work days
Payment Terms Western Union, T/T, L/C, MoneyGram
Supply Ability 1000000 Units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Phase Inductance 13.5(±10%）Ohm/20C Phase Current 370mA
Step Angle 7.5° Rated Voltage 5V
Highlight

Through Shaft Linear Stepping Motor 5V

,

Linear Stepping Motor 25mm Diameter

,

7.5 Step Angle Linear Drive Motor
Leave a Message
Product Description

Through shaft 7.5 degree step angle permanent magnet stepper motor 25mm pm linear stepper motor supplier



VSM25L series permanent magnet linear stepping motor, when the rotor runs continuously, the lead screw will move forward or backward. This column can be divided into 3 types of motor structures: fixed shaft type, through shaft type and external drive type.

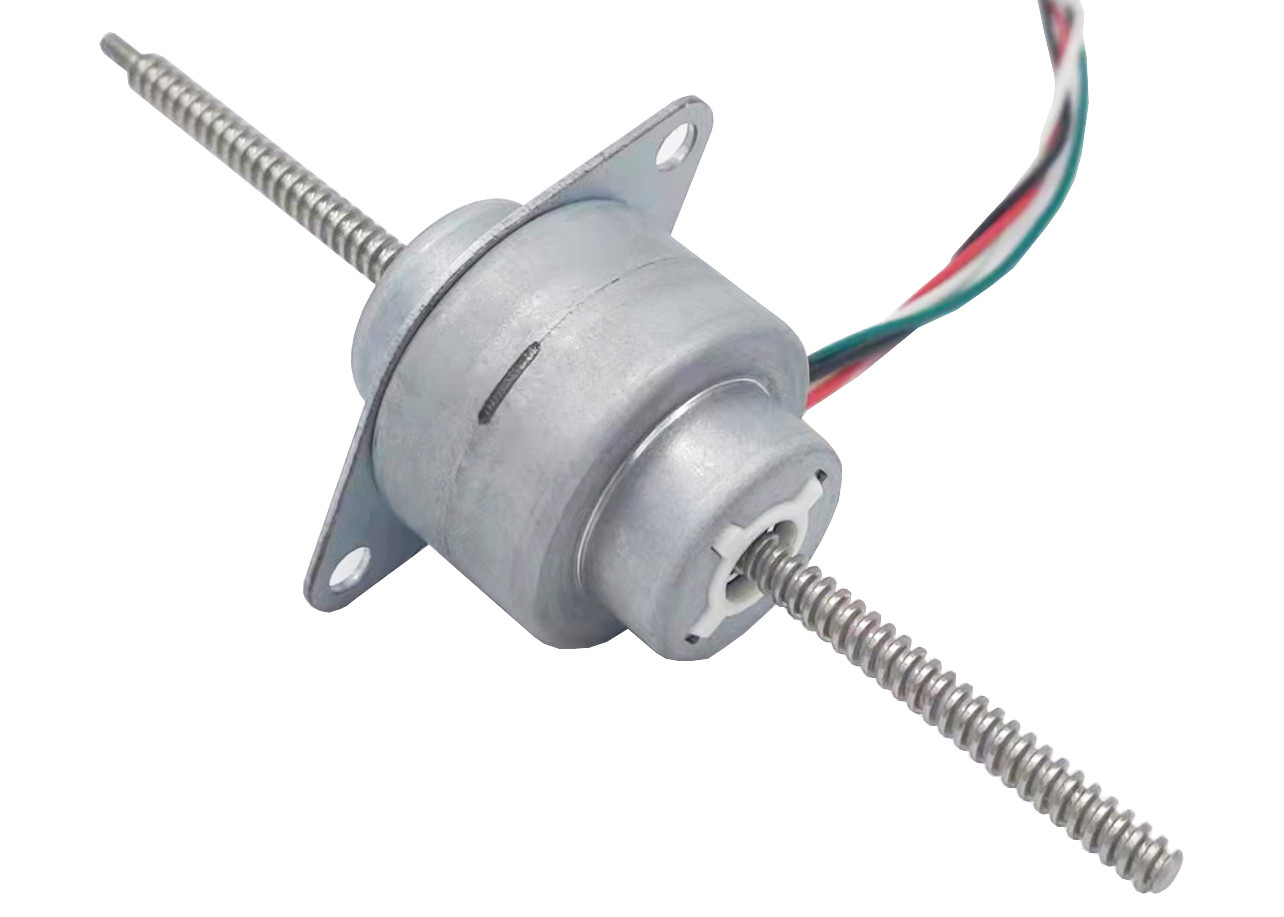

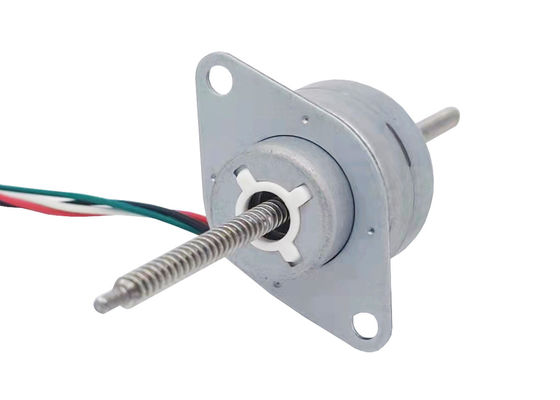

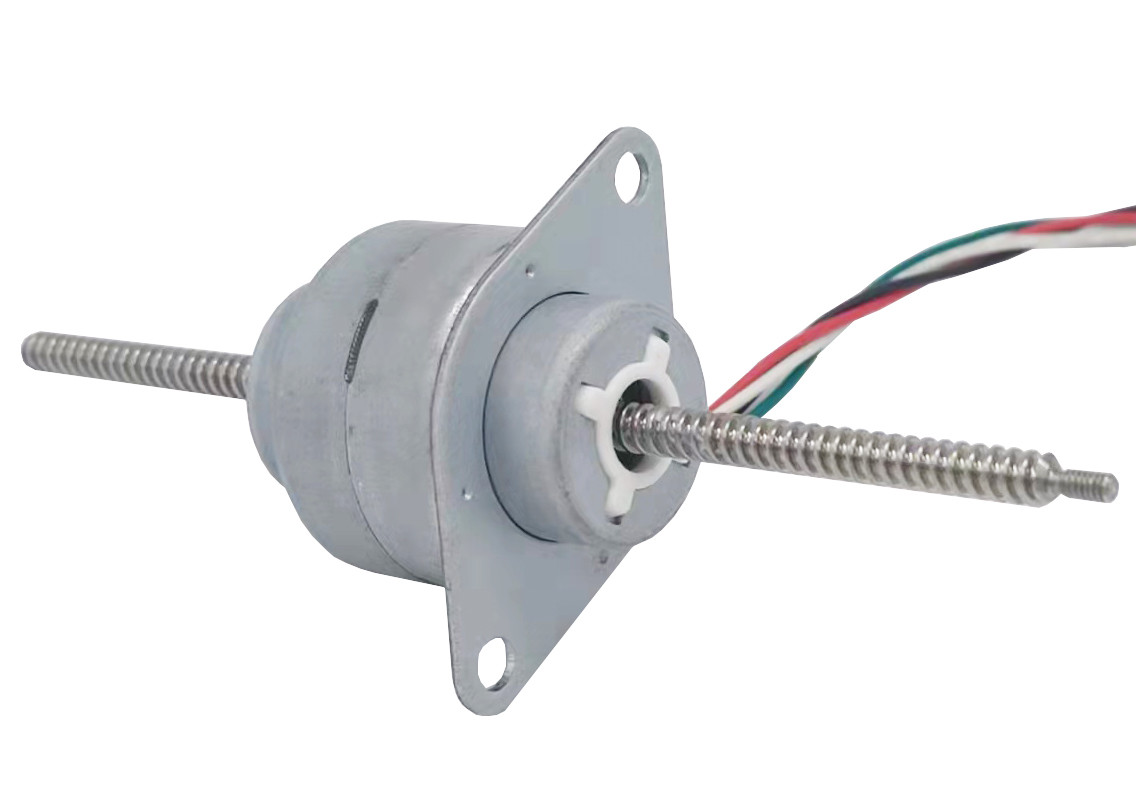

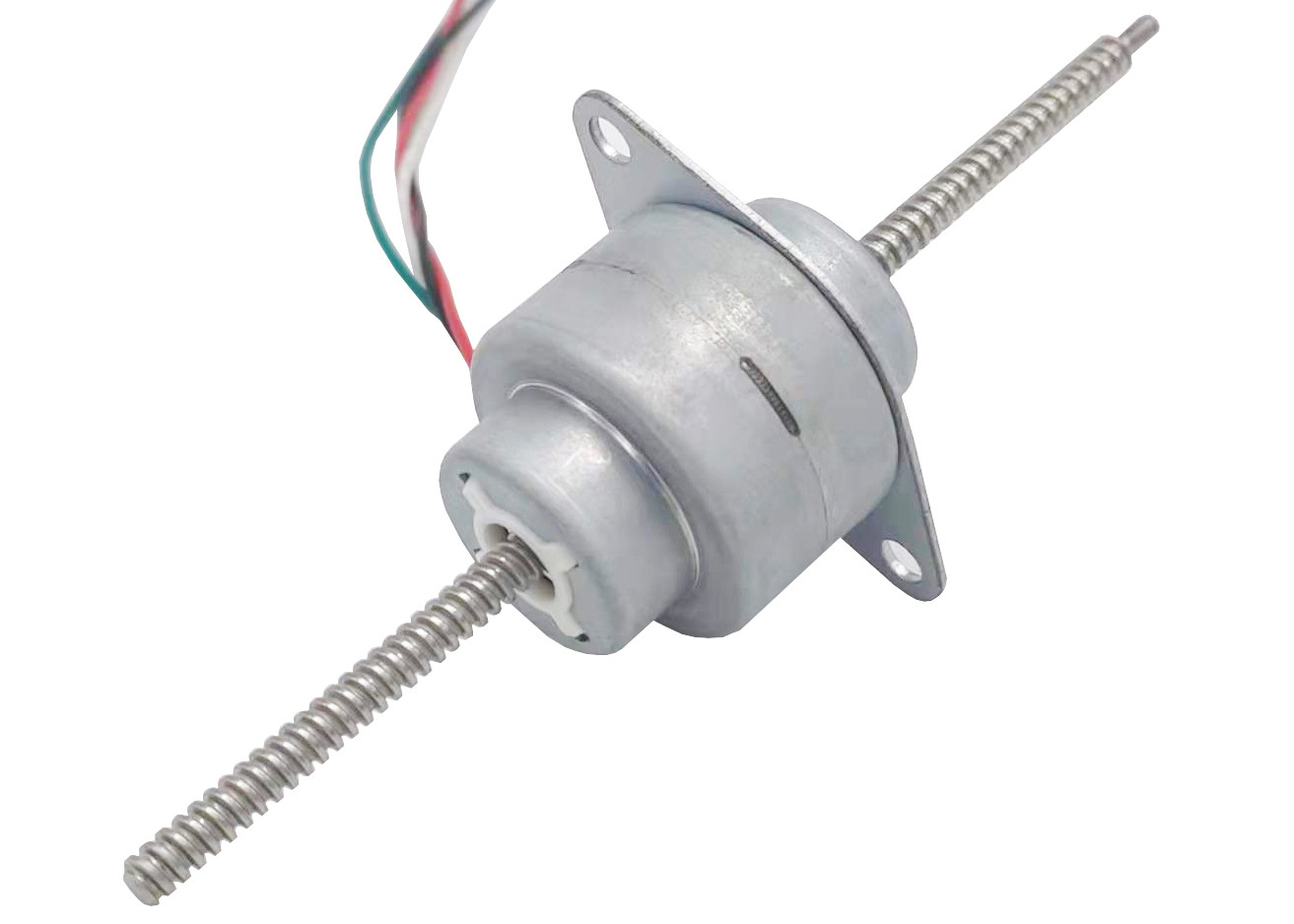

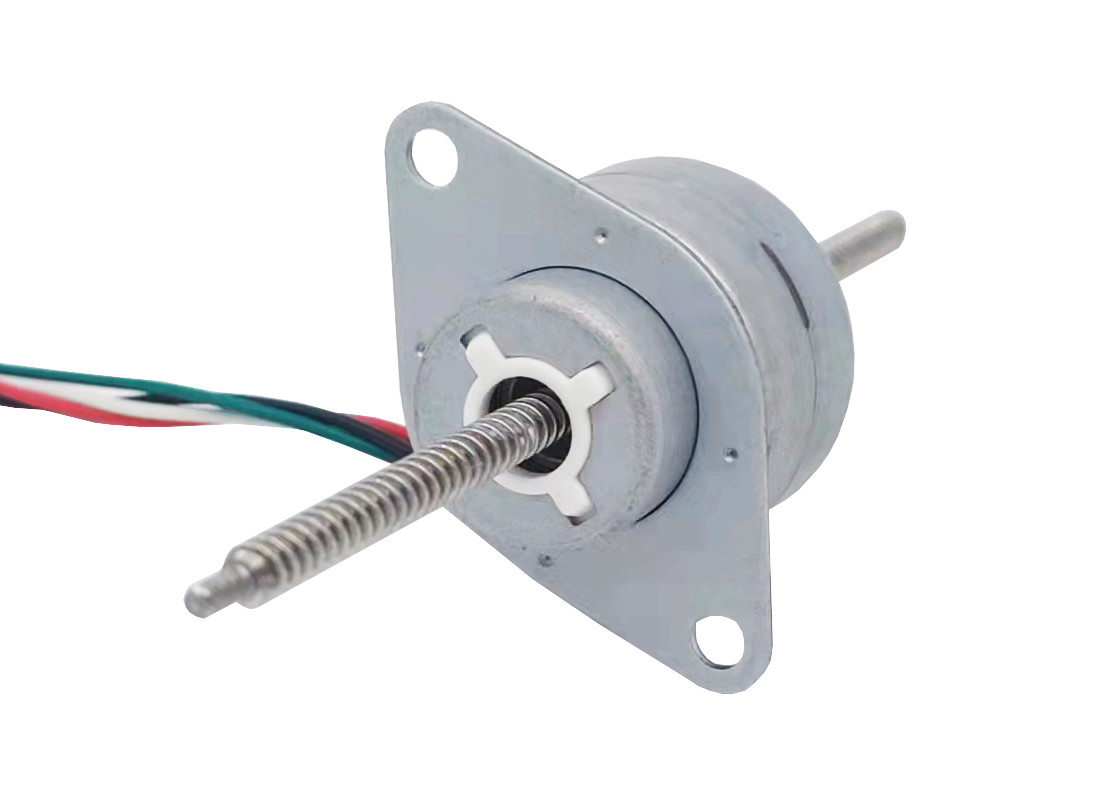

This is a through shaft stepper motor.


The step angle of VSM25 series permanent magnet linear stepper motor is 7.5 degrees and 15 degrees. When the step angle is 7.5 degrees, the step length can be 0.0127 mm, 0.0254 mm and 0.0508 mm.
When the step angle is 15 degrees, the step length can be 0.0254mm, 0.0508mm, 0.1016mm.

Parameters can be customized according to customer requirements.



Main uses: automotive, medical, valve control stage lighting, etc.,
At the same time, the external wiring part can be connected according to customer requirements.



Our team has more than ten years of experience in stepper motor design, development and production, and can realize product development and auxiliary design according to the special needs of customers!









Through shaft 7.5 degree step angle permanent magnet stepper motor 25mm pm linear stepper motor supplier 0









Mechanical Dimension:MM



Through shaft 7.5 degree step angle permanent magnet stepper motor 25mm pm linear stepper motor supplier 1











Technical Features


This product is a patented product of the company. It converts the rotation of the motor into a linear motion through the relative
movement of the internal rotor and the screw. It is mainly used in valve control, automatic buttons, medical equipment, textile
machines, robots and other related fields.
At the same time, the external wiring part can use four terminal posts (light pins) or connecting wires, or FPC FFC PCB, etc.
according to customer requirements.
The output part is linear.







Application :



HVAC/R Valve Actuation

Office Automation Printers, Copiers, Data storage

Medical Applications Pill dispensing Analysers

Telecommunication Antennae positioning Switching lines

Other Industries & Applications Robotics



Typical Applications



  • Medical Equipment

  • Automatic Control

  • 3D Printer

  • Precision Calibration

  • Precision Fluid Measurement

  • Precise Position Movement



Specifications

Motor diameter

25mm

Rated voltage

5V

No. of phases

2 phases

Phase Current

370mA

Phase Inductance

13.5Ω

Step angle

7.5°,15°
Stear Travel 0.0127mm,0.0254mm,0.0508mm,0.1016



Competitive Advantage



  • High quality and the best price.

  • Fast deliver,storage company and rich inventory

  • Near Shanghai port, the traffic is very convenient.



Product Detail Presentation




 Through shaft 7.5 degree step angle permanent magnet stepper motor 25mm pm linear stepper motor supplier 2





Through shaft 7.5 degree step angle permanent magnet stepper motor 25mm pm linear stepper motor supplier 3



Through shaft 7.5 degree step angle permanent magnet stepper motor 25mm pm linear stepper motor supplier 4
