NEMA 8 20mm 12v Dc Pm Printer Mini Linear Stepper Motor 2 Phase 4 Wire
| Place of Origin | Jiangsu, China (Mainland) |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | SM20-21L |
| Minimum Order Quantity | 1 |
| Price | $4.5-$15 |
| Packaging Details | Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. |
| Delivery Time | 15~30 days after the sample is paid |
| Payment Terms | Western Union, MoneyGram，Credit Card,VISA,, T/T |
| Supply Ability | 10000 PCS 45days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Permanent Magnet | Step Angle | 18° |
|---|---|---|---|
| Phase | 2 | Current / Phase | 800mA |
| Rated Voltage | 12V | Coil Resistance | 20Ω±10% |
| Holding Torque | 800gf.cm | Stroke | 21mm |
| High Light | 12v Dc Mini Linear Stepper Motor,Pm Printer Linear Stepper Motor,20mm Lead Screw Stepper Motor |
||
Product Description
NEMA 8 20mm 12v Dc Motor Pm Printer Mini Linear Stepper Motor 2-Phase 4-Wire Lead Screw Stepper Motor
SM20-21L is a precision micro step motor, the output shaft with a pitch of 0.5mm of the screw, through the screw and the screw rod supporting the turn of the screw into a thrust.
Motor basic step angle is 18 degrees, the motor running 20 steps every week, so the resolution of displacement can reach 0.02mm, to achieve the purpose of precision control.
Actuator aspects using subdivision drive way to meet.
Because of its small size, high precision, easy to control and other excellent characteristics, so this micro stepper motor is widely used in the camera, optical instruments, lenses, precision medical devices, automatic door locks and other fields.
The motor input part of the FPC, but can according to the customer demand can be changed to a connecting line needle, PCB and other forms.
The mounting bracket can be changed according to the customer's request.

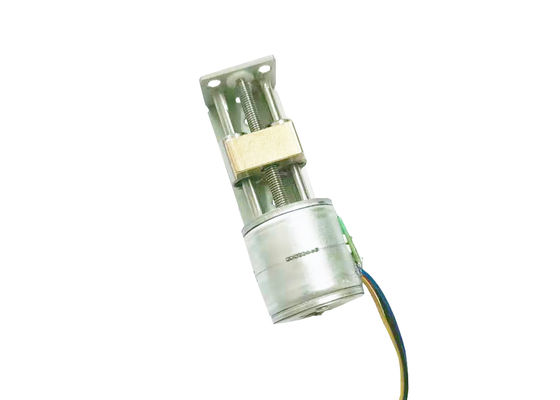

Stepper motor manufacturer 20mm linear stepping motor 21mm effective stroke linear actuator micro stepper motor with lead screw and slider
Technical Features
Because of its small size, high precision, easy to control and other excellent characteristics, so this micro stepper motor is widely used in the camera, optical instruments, lenses, precision medical devices, automatic door locks and other fields.
The motor input part of the FPC, but can according to the customer demand can be changed to a connecting line needle, PCB and other forms.
Main Application
1) Camera
2) Optical instruments
3) Lenses
4) Precision medical devices
5) Automatic door locks
Specifications
|
PRODUCT NAME |
20mm lead screw motor |
|
MODEL |
SM20-21L |
|
MAX. STARTING FREQUENCY |
MORE THAN 1100 PPS |
|
MAX. SLEWING FREQUENCY |
MORE THAN 1600 PPS |
|
PULL IN TORQUE |
MORE THAN 800g (AT125 PPS , 12V DC) |
|
INSULATION CLASS |
CLASS E FOR COILS |
|
INSULATION STRENGTH |
100 V AC FOR ONE SECOND |
|
INSULATION RESISTENCE |
50 MΩ (DC 100 V) |
|
OPERATING TEMPERATURE RANGE |
-0 ~+55 ℃ |
|
OEM & ODM SERVICE |
AVAILABLE |
Product Detail Presentation
Stepper motor manufacturer 20mm 5v 12v 24v Micro linear stepping motor 1000 rpm 0.03 Nm linear screw stepping motor
high quality 12V Micro Linear Motion slide 2-phase 4-wire Miniature with Stepper Motor
Type Of Wire Connect For Reference
Motor input method with Pin type,FPC, PCB, Lead wire etc. These can be customized according to customer needs.
