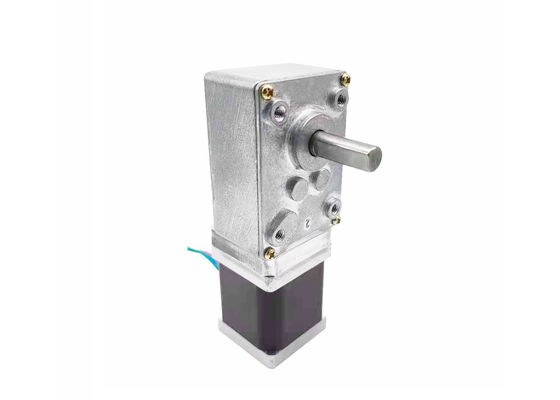

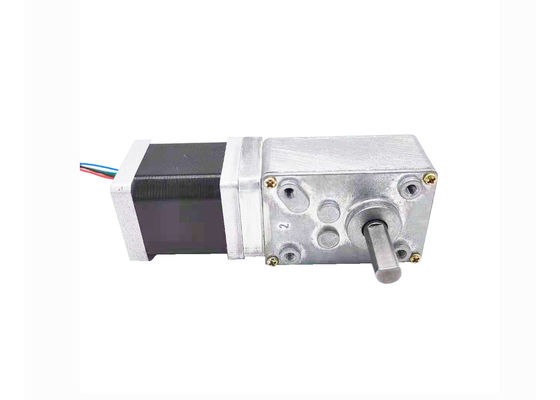

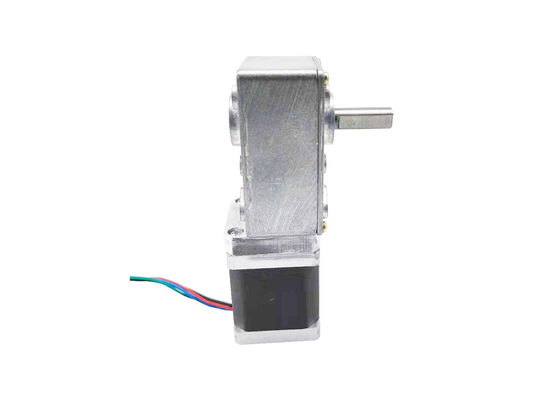

Nema 14 1.8 Degree 12vdc gear motor low rpm Hybrid Stepper Motor Plus Worm Gear Transmission

  • Nema 14 1.8 Degree 12vdc gear motor low rpm Hybrid Stepper Motor Plus Worm Gear Transmission
  • Nema 14 1.8 Degree 12vdc gear motor low rpm Hybrid Stepper Motor Plus Worm Gear Transmission
  • Nema 14 1.8 Degree 12vdc gear motor low rpm Hybrid Stepper Motor Plus Worm Gear Transmission
Place of Origin Jiangsu,China(mainland)
Brand Name VIC-TECH
Certification RoSH
Model Number 35HS42+634JSX49
Minimum Order Quantity 1 Unit
Price $17-25/Unit
Packaging Details Standard export package, or can be customized
Delivery Time 15-30 work days
Payment Terms T/T, Western Union, L/C, MoneyGram
Supply Ability 1000000 units per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Step Angle 1.8° Type Hybrid
Phase 2 Current Per Phase 1A/Phase
Phase Resistance 3.8 Ω / Phase Reduction Ratio 49:1
Holding Torque 1.2kg.cm
High Light

1.8 Degree Hybrid Stepper Motor

,

Nema 14 Hybrid Stepper Motor

,

RoSH Worm Gear Transmission Stepper Motor
Leave a Message
Product Description

Nema14 35HS42+634JSX49 1.8 Degree Step Angle High Quality Hybrid Stepper Motor Plus Worm Gear Transmission

The 35HS42+634JSX49 product is a hybrid stepping motor with a square size of 35*42. The length can be adjusted according to power and other requirements, and the range is generally between 20~51mm. The length of the worm gear reducer is 58.1mm, and the motor gear reduction ratio is 1:49. The conventional gear reduction ratio is 1:49 1:74 1:101 1:218 1:505 1:634 The gear reduction ratio can be customized according to customer requirements, and special requirements can be re-evaluated.
Hybrid stepping motors have the advantages of high control accuracy, high transmission resolution, and large output torque. It is widely used in engraving machines, medical equipment, stage lighting, precision instruments and other fields.
The drive device or control device required by the customer can be developed in cooperation with the customer.
The basic step angle of the motor is 1.8 degrees.
At the same time, we can provide products of the same size with a step angle of 0.9 degrees!

Our team has more than 10 years of experience in stepper motor design, development and production, and can realize product development and auxiliary design according to the special needs of customers!
Customer needs are our efforts, please feel free to contact us!



Nema 14 1.8 Degree 12vdc gear motor low rpm Hybrid Stepper Motor Plus Worm Gear Transmission 0

Mechanical Dimension:MM


Nema 14 1.8 Degree 12vdc gear motor low rpm Hybrid Stepper Motor Plus Worm Gear Transmission 1

Model

35HS42+634JSX49

Motor type

Hybrid motor

Motor diameter

36mm
NO.OF PHASES 2 PHASES
STEP ANGLE 1.8°/STEP

Resistance per phase

3.8 Ω / Phase

Reduction ratio

49:1

Current per phase

1A/Phase
INSULATION CLASS B

Gearbox output shaft length

Adjustable

Holding Torque

1.2kg.cm






​Textile EquipmentTypical Applications

  • Automatic Control
  • Packing Machine
  • Engineering Vehicle
  • 3D Printer
  • New Energy
  • Gate Openers
  • Vending Machine
  • Conveyor System
  • Medical Equipment
  • Fluid Control
  • OA Financial Equipment


Competitive Advantage

  • High quality and the best price.

  • Fast deliver,storage company and adequate inventory.

  • Near Shanghai port, the traffice is very convenient.

Product Detail Presentation


Nema 14 1.8 Degree 12vdc gear motor low rpm Hybrid Stepper Motor Plus Worm Gear Transmission 2
