SM20-21L-T20mm Diameter 21mm Stroke Permanent Magnet Stepper Motor

Place of Origin Jiangsu, China (Mainland)
Brand Name VIC-TECH
Certification RoHS
Model Number SM20-21L-T
Minimum Order Quantity 1
Price $7-$18.5/unit
Packaging Details Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box.
Delivery Time 15~30 days after the sample is paid
Payment Terms Western Union, MoneyGram,Credit Card,VISA,, T/T
Supply Ability 10000 PCS 45days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Permanent Magnet Step Angle 18°
Phase 2 Current / Phase 770mA
Rated Voltage 12V Coil Resistance 15.6Ω±7%
Stroke 21mm Thrust 1.5KG
High Light

21mm Stroke Permanent Magnet Stepper Motor

,

20mm Diameter Permanent Magnet Stepper Motor

,

21mm Stroke PM Stepper Motor

Leave a Message
Product Description

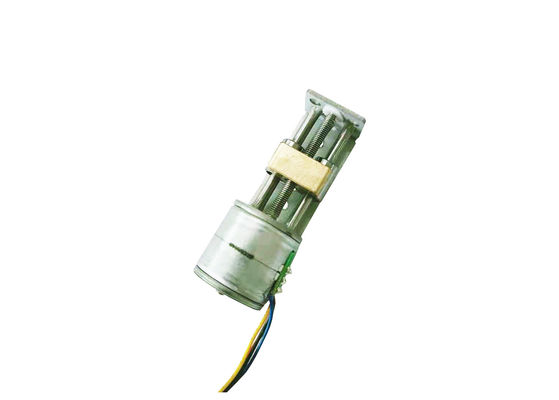

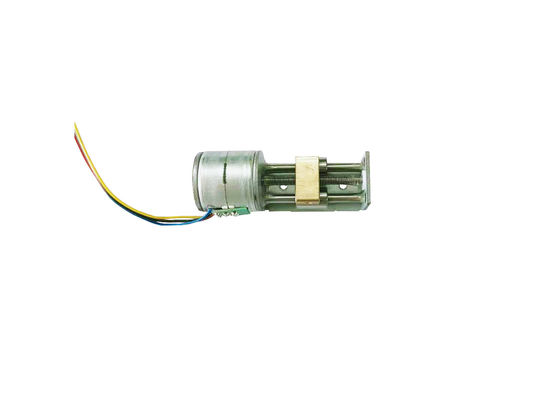

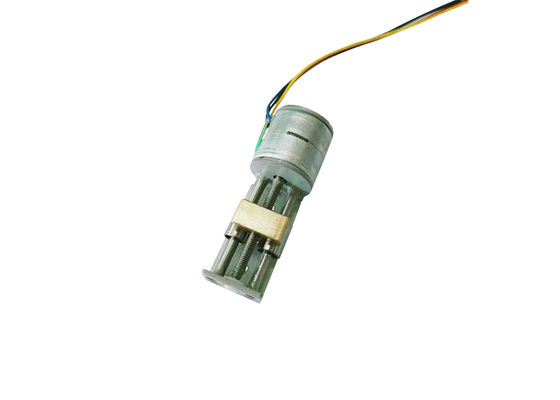

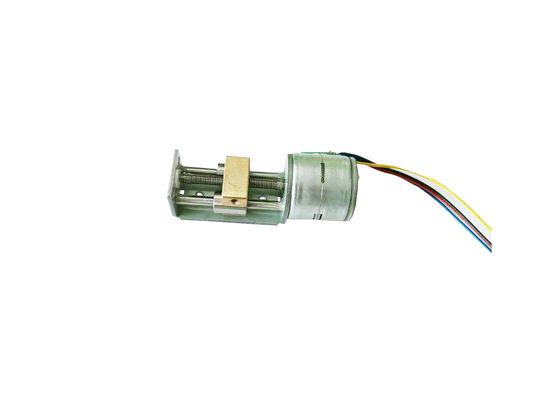

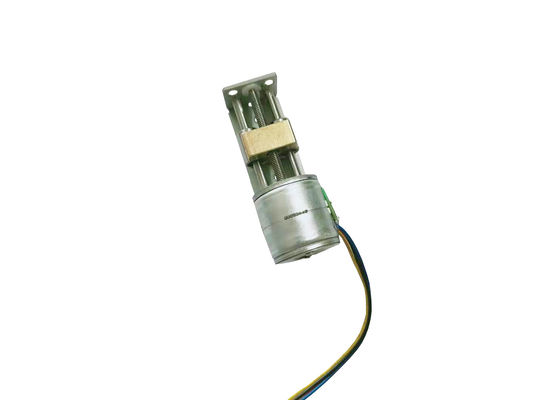

20mm diameter 21mm stroke stepper motor with 1.5kg thrust

This product is a 20mm diameter linear stepper motor, which includes a screw rod and a slider. The maximum thrust can reach 1.5 kg,
The slider can move linearly. The action of the motor is completely controlled by the driver. This product can be used with precision instruments or electronic products.
Our products can be customized, if you are interested, you can write to me.







Electrical parameter:







Model No. SM20-21L-T
Motor diameter 20mm
Rated voltage 12V
No. of phases 2 phases
Step angle 18°
Max starting frequency 1000 PPS min
Current Per Phase 770/mA Phase
Coil Pesistance 15.6±7%ohm/Phase





drawing

SM20-21L-T20mm Diameter 21mm Stroke Permanent Magnet Stepper Motor 0

Technical Features

Because of its small size, high precision, easy to control and other excellent characteristics, so this micro stepper motor is widely used in the camera, optical instruments, lenses, precision medical devices, automatic door locks and other fields.
The motor input part of the FPC, but can according to the customer demand can be changed to a connecting line needle, PCB and other forms.

Main Application

1) Camera

2) Optical instruments

3)  Lenses

4)  Precision medical devices

5)  Automatic door locks

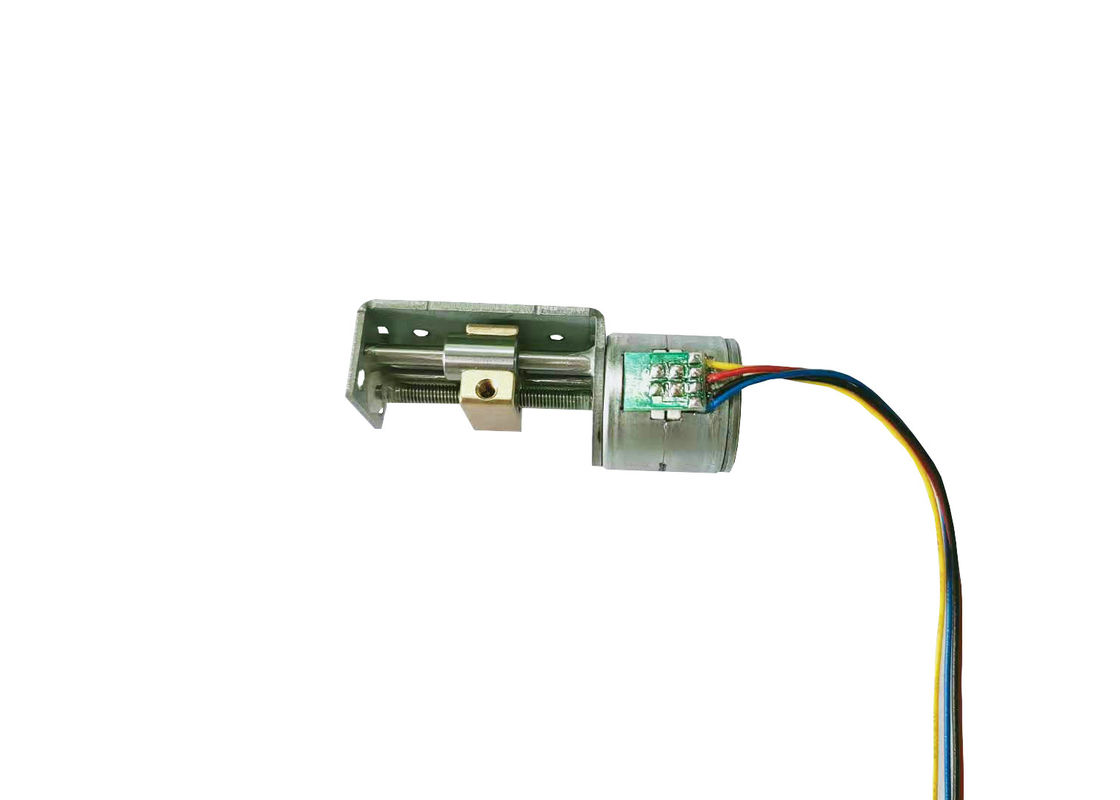

Product Detail Presentation



SM20-21L-T20mm Diameter 21mm Stroke Permanent Magnet Stepper Motor 1

Type Of Wire Connect For Reference

Motor input method with Pin type,FPC, PCB, Lead wire etc. These can be customized according to customer needs.

SM20-21L-T20mm Diameter 21mm Stroke Permanent Magnet Stepper Motor 2
