NEMA 8 20mm Diameter Bipolar Hybrid Stepper Motor
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS, ISO9001 |
| Model Number | NEMA8 |
| Minimum Order Quantity | 1Unit |
| Price | $55~$80/Unit |
| Packaging Details | Standard export package in corrugated carton (Mass production). |
| Delivery Time | 15-30 work days |
| Payment Terms | Western Union, T/T, L/C, MoneyGram |
| Supply Ability | 100000 Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Resistance | 3.7Ω±15% | Phase | 2 Phases, 4 Steps |
|---|---|---|---|
| Type | Hybrid Linear Stepper Motor | Step Angle | 1.8° |
| Encoder Type | Optical Encoder | Encoder Resolution | 500/1000/2000 PPR |
| High Light | Bipolar Hybrid Stepper Motor,20mm Diameter Hybrid Stepper Motor,NEMA 8 Bipolar Stepper Motor |
||
Product Description

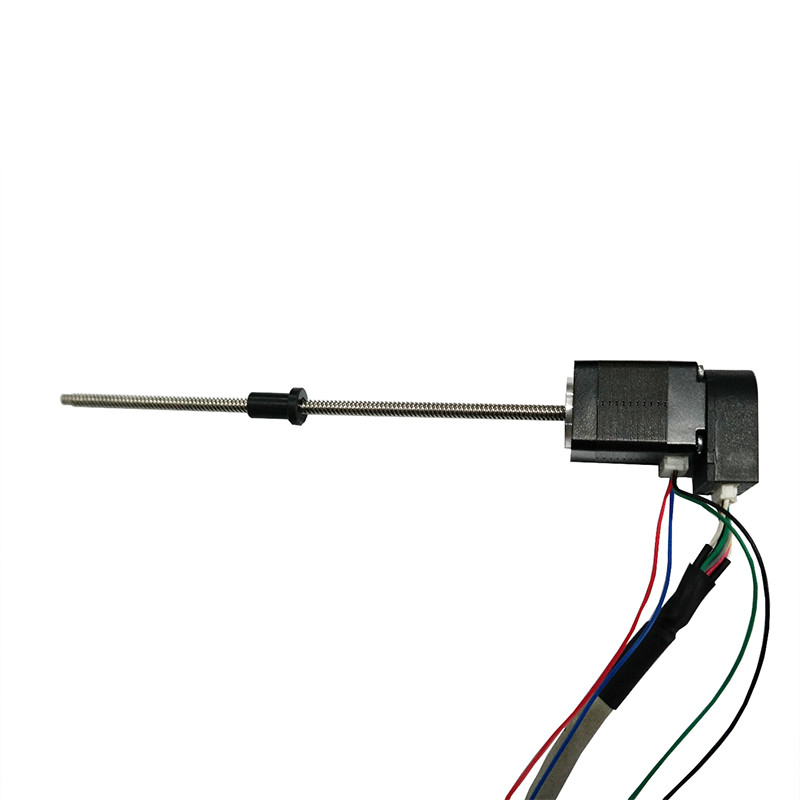

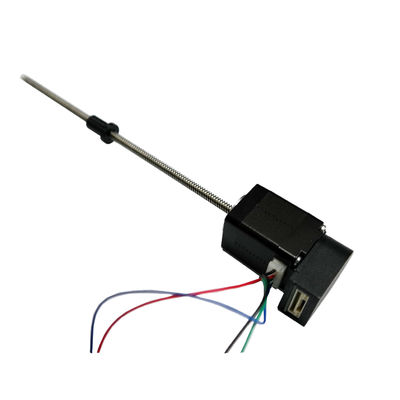

High Resolution NEMA8 20mm Diameter Bipolar Hybrid Stepper Motor with 500 1000 2000 PPR Optical Encoder
This product is 20.2mm diameter hybrid stepper motor with high resolution optical encoder.
Motor is regular NEMA 8 hybrid motor, and it can by replace by any other hybrid motors.
Lead screw is Tr3.5*4mm pitch trapezoidal screw.
About the encoder, it’s high resolution optical encoder, and we have 500, 1000 and 2000 PPR for you to choose.
PPR means pulse per revolution.
For example, if we use 1000 PPR encoder, when the motor spins one turn, encoder with generate 1000 pulse signals, and it’s very high precision.
This motor is very helpful for high precision control, and closed loop system.
Typical applications:
* Medical Equipment
* Linear Robotic Control
* Precision Calibration
* High Precision Valve
* Other Precise Position Movement
Plus tt has extra low noise and high stability.
Design Layout (Unit:mm)
Parameter sheet:
| Product model | 20BYGH29 |
| Motor type | Bipolar hybrid stepper motor |
| Motor diameter | 20.2mm (NEMA8) |
| Coil resistance | 3.7 Ohm±15% |
| Step angle | 1.8° |
| Lead screw type |
3.5mm diameter*4mm pitch Trapezoidal leas screw |
| Encoder type | Optical encoder |
| Resolution | 500, 1000, 2000 PPR |
Competitive Advantage
-
High quality and the best price.
-
Fast deliver,storage company and rich inventory
-
Near Shanghai port, the traffic is very convenient.
