FF-180 High Torque 8V 30 RPM Brushed DC Geared Motor

  • FF-180 High Torque 8V 30 RPM Brushed DC Geared Motor
  • FF-180 High Torque 8V 30 RPM Brushed DC Geared Motor
  • FF-180 High Torque 8V 30 RPM Brushed DC Geared Motor
  • FF-180 High Torque 8V 30 RPM Brushed DC Geared Motor
  • FF-180 High Torque 8V 30 RPM Brushed DC Geared Motor
Place of Origin Jiangsu, China (Mainland)
Brand Name VIC-TECH
Certification RoHS
Model Number FF-180 Gear Motor
Minimum Order Quantity VIC-TECH
Price $3~$7/unit
Packaging Details Standard export package, or can be customized
Delivery Time 15-30 work days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000000Units per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage 8V DC Output Power About 0.5 To 3.5W
Type DC Brush Motor Usage Door Locks And 3D Printers
Certification ROHS Torque 4 KG
Commutation Brushed Speed(RPM) 20-30( Rpm )
No-Load Current 200 MA Gear Ratio 1：527
High Light

30 RPM Brushed DC Geared Motor

,

8V Brushed DC Geared Motor

,

FF-180 Brushed Gear Motor
Leave a Message
Product Description

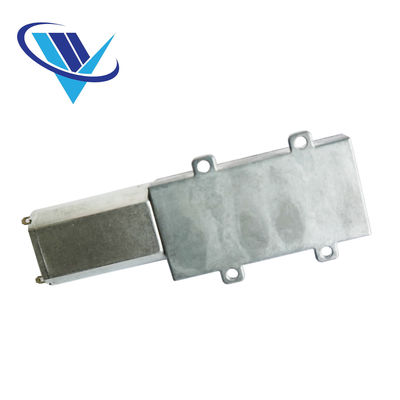

FF-180 High Torque 8V DC 30 RPM Brushed Gear Motor for Electronic Lock

This product is sepecically designed for electrical door lock, it’s a FF-180 DC brush motor attached by a 527:1 reduction gear box.

It’s loaded speed is 22 RPM, with 4kgf.cm torque.



About FF-180PH motor (Without Gearbox):

FF-180 High Torque 8V 30 RPM Brushed DC Geared Motor 0

Mechanical Dimension(With Gearbox):MM

FF-180 High Torque 8V 30 RPM Brushed DC Geared Motor 1

Typical Applications

  • Electronic Lock
  • Office Automatic Equipments
  • Printer/paper Feeder
  • Bank Equipments

  • Camera

  • label printer

  • Electtric Door Locks

  • Label stripping machine

Specifications



Rated voltage No-load speed Loaded speed No-load current Stall current Rated torque Stall torque
DC 8V 30 RPM 22 RPM 200mA 2000mA 4kgf.cm 25kgf.cm



The above products are only representative models, we can customize the products according to customer requirements. Includes the length and diameter of the shaft.Our company can also provide OEM services.



Product Detail Presentation

FF-180 High Torque 8V 30 RPM Brushed DC Geared Motor 2



FF-180 High Torque 8V 30 RPM Brushed DC Geared Motor 3

FF-180 High Torque 8V 30 RPM Brushed DC Geared Motor 4
