5v 10mm 18 degree Weight 14g Metal Gear Motor For Precision Instruments

Place of Origin Jiangsu, China (Mainland)
Brand Name VIC-TECH
Certification RoHS
Model Number SM10 motor worm gearbox
Minimum Order Quantity 1Unit
Price $3.8~$7/Unit
Packaging Details Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit
Delivery Time 15-30 work days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000000 Units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Step Angle(degrees) 18 Degree Phase 2
Voltage 5V Current / Phase 280mA/Phase
Resistance 39Ω±10% Weight 14g
Rotation CW/CCW Type Permanent Magnet
High Light

micro planetary gear motor

,

worm gear stepper motor

,

10mm Metal Gear Motor

Leave a Message
Product Description



5v 10mm Metal Gear Motor / Mini Dc Gear Motor For Precision Instruments



SM10 motor worm gearbox is the use of diameter 10MM micro stepper motor and 10*12*18 precision metal reduction gearbox combination, the reduction ratio can be customized according to customer needs.
Motor basic step angle is 18 degrees, that is, 20 steps per turn, plus the deceleration box deceleration effect, the final motor rotation angle resolution can reach 0.05~6 degrees, can be used in many requirements
Precise control of the rotating position of the field.
1:118 1:236 1:603 , the customer can according to different use torque speed requirements to match the speed ratio, at the same time
Given the proper driving frequency of the stepper motor can reach the determination of the speed and torque.
This product gear box uses the most advanced equipment in the international processing related parts, so the high precision, high efficiency, low noise, and the use of reasonable and reliable process, make the product has better reliability.
The power input part and standard stepper motor can be used as probe structure, FPC, FFC, PCB cable and other forms.
Part of the output of the motor can be used in a variety of output structure, such as the circular axis, D axis, and the wire rod!

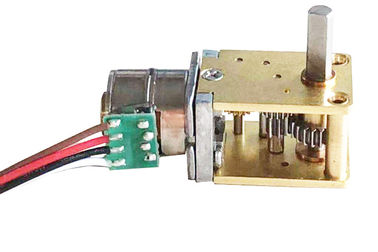

5v 10mm 18 degree Weight 14g Metal Gear Motor For Precision Instruments 0



Mechanical Dimension:MM

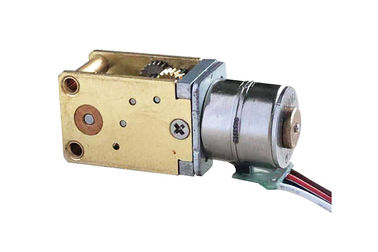

5v 10mm 18 degree Weight 14g Metal Gear Motor For Precision Instruments 1

Technical Features



All parts of the product are processed in the precision equipment, while the use of advanced and reliable assembly process, which is the product with high transmission efficiency, low noise, high reliability characteristics

Reduction ratio of 50 100 150 200 350 380, can be customized according to the needs of the 500 700 1000

Customers can choose the deceleration ratio according to the different requirements of the torque speed

Our team has more than 10 years experience in the design, development and production of micro motors, so we can develop and design the products according to the special needs of customers!



Customer needs is the direction of our efforts, please feel free to contact!

Typical Applications

  • Intelligent Security Products

  • Camera Lenses

  • Door Locks

  • Wearable device



Specifications

Product Name 10mm micro stepper motor
Model SM10 motor worm gearbox
Rated Voltage 5 V
Current Per Phase  130mA /phase
Coil Resistance 39Ω±10%
No. Of phase 2  Phases
Step Angle 18 degree
Excitation Method 2 Phase Excitation
Drive Mode Bipolar Drive
MAX. STARTING FREQUENCY 900 PPS min. (AT 5.0 V DC)
MAX. SLEWING FREQUENCY 1200 PPS min. (AT 5.0 V DC)
PULL IN TORQUE 3.5 gf-cm min. (AT 500 PPS , 5.0V DC)
PULL OUT TORQUE 4.2 gf-cm min. (AT 500 PPS , 5.0V DC)
Insulation Class Class E for Coils
Insulation Strength 100V AC FOR ONE SECOND
Insulation Resistance 50MΩ DC 500 V
Operating Temperature Range -0~+55 ℃
Weight 13g
OEM & ODM SERVICE AVAILABLE



Competitive Advantage

  • High quality and the best price.
  • Fast deliver,storage company and rich inventory
  • Near Shanghai port, the traffic is very convenient.

Product Detail Presentation

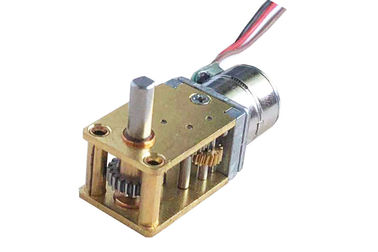

5v 10mm 18 degree Weight 14g Metal Gear Motor For Precision Instruments 2



Type Of Wire Connect For Reference

Motor input method with Pin type, FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

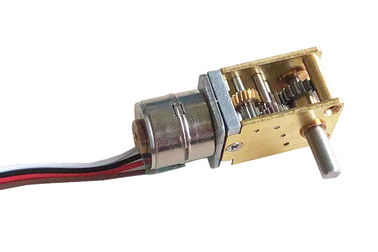

5v 10mm 18 degree Weight 14g Metal Gear Motor For Precision Instruments 3



Type of Fixture Cover

The regular models are shown in the figure, and the special sizes can be customized.

5v 10mm 18 degree Weight 14g Metal Gear Motor For Precision Instruments 4
