High Resolution Miniature Stepper Motor / 2 Phase 3.0 V Weight 5.5 g Micro Stepper Motor

Place of Origin Jiangsu, China (Mainland)
Brand Name VIC-TECH
Certification RoHS
Model Number VSM1069
Minimum Order Quantity 1Unit
Price $3~$7/Unit
Packaging Details Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit
Delivery Time 15-30 work days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000000 Units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Step Angle(degrees) 18 Degree Phase 2
Voltage 3.0 V Resistance 15 Ω±10%
Weight 5.5 G Rotation CW/CCW
Type Permanent Magnet Holding Torque 3.0 Gf.cm~3.8 Gf.cm
High Light

micro planetary gear motor

,

pm stepper motor

,

High Resolution Miniature Stepper Motor

Leave a Message
Product Description

VSM1069 10mm micro stepper motor 2 phase pm stepper motor for precision medical devices

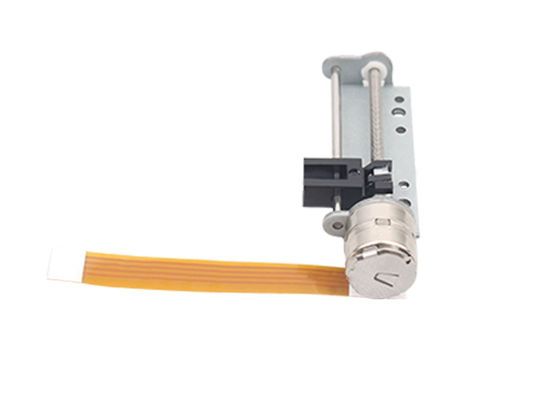

This is a special precious micro stepper motor (or say liner stepper motor)with a bracket and movable slide( when motor rotate, the slide will moving forward or backward ), the moving speed can controlled by the precious micro stepper motor driving pulse frequency, the moving distance can be controlled by the precious micro stepper driving pulse number. for this typical motor, when motor driving 2-2 phase, 1 pulse make the slide move 0.02 mm. the basic slide is a black plastic (POM) unit as the photo show, also the slide can customization in any shape.

High Resolution Miniature Stepper Motor / 2 Phase 3.0 V Weight 5.5 g Micro Stepper Motor 0



Mechanical Dimension:MM

High Resolution Miniature Stepper Motor / 2 Phase 3.0 V Weight 5.5 g Micro Stepper Motor 1

Typical Applications

  • Intelligent Security Products

  • Camera Lenses

  • Door Locks

  • Wearable device



Specifications

Product Name 10mm micro stepper motor
Model VSM1069
Rated Voltage 3.0  V
Current Per Phase  200 mA /phase
Coil Resistance 15 Ω±7%
No. Of phase 2  Phases
Step Angle 18 degree
Excitation Method 2 Phase Excitation
Drive Mode Bipolar Drive
Pull-In Torque 3.0 gf.cm At 480 pps
Pull-Out Torque 3.8 gf.cm At 480 pps
Max. Response Frequency 800 pps,No Load
Max. Starting Frequency 1100 pps,No Load
Insulation Class Class E for Coils
Insulation Strength 300 V AC for One Second
Insulation Resistance 50 MΩ (DC 100 V)
Operating Temperature Range -20~+70 ℃
Weight 10 g(Ref.)
OEM & ODM SERVICE AVAILABLE



Technical Features

VSM1069 is a precision lead screw motor ,the output shaft with a pitch of 0.4mm of the screw, through the screw and the screw rod supporting the turn of the screw into a thrust.
Motor basic step angle is 18 degrees, the motor running 20 steps every week, so the resolution of displacement can reach 0.02mm, to achieve the purpose of precision control.
Actuator aspects using subdivision drive way to meet.
Because of its small size, high precision, easy to control and other excellent characteristics, so this micro stepper motor is widely used in the camera, optical instruments, lenses, precision medical devices, automatic door locks and other fields.
The motor input part of the FPC, but can according to the customer demand can be changed to a connecting line needle, PCB and other forms.

Competitive Advantage

  • High quality and the best price.
  • Fast deliver,storage company and rich inventory
  • Near Shanghai port, the traffic is very convenient.

Torque Curve For Reference

High Resolution Miniature Stepper Motor / 2 Phase 3.0 V Weight 5.5 g Micro Stepper Motor 2

High Resolution Miniature Stepper Motor / 2 Phase 3.0 V Weight 5.5 g Micro Stepper Motor 3



Customization service


Motor’s design can be adjusted based on customer’s requirement including:
Motor’s diameter: we have 6mm, 8mm, 10mm, 15mm and 20 mm diameter motor
Coil resistance/ rated voltage: coil resistance is adjustable, and with higher resistance, motor’s rated voltage is higher.
Bracket design/ lead screw length: if customer want the bracket to be longer/short, with special design such as mounting holes, it’s adjustable.
PCB + cables + connector: PCB’s design, cable length and connector pitch are all adjustable, they can be replaced into FPC if customers require.
Lead Time and Packaging Information


Lead time for samples:


Standard motors in stock: within 3 days
Standard motors not in stock: within 15 days
Customized products: About 25~30 days (based on complexity of customization)
Lead time for building a new mold: generally about 45 days
Lead time for mass production: based on order quantity
Packaging:
Samples are packed in foam sponge with a paper box, shipped by express
Mass production, motors are packed in corrugated cartons with transparent film outside. (shipping by air)
If shipped by sea, product will be packed on pallets



Type Of Wire Connect For Reference



Motor input method with Pin type, FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

High Resolution Miniature Stepper Motor / 2 Phase 3.0 V Weight 5.5 g Micro Stepper Motor 4

Product Detail Presentation

High Resolution Miniature Stepper Motor / 2 Phase 3.0 V Weight 5.5 g Micro Stepper Motor 5
