2-phase copper slider stepper motor diameter 15 mm, with M3 lead screw, thrust 450g
| Place of Origin | Jiangsu, China (Mainland) |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | SM15-80L-T |
| Minimum Order Quantity | 1 unit |
| Price | $7-$15/unit |
| Packaging Details | Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. |
| Delivery Time | 15-30 work days |
| Payment Terms | Western Union, MoneyGram，Credit Card |
| Supply Ability | 1000000 units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Permanent Magnet | Step Angle | 18°/step |
|---|---|---|---|
| Phase | 2 Phases | Current / Phase | 400mA/PHASE |
| Coil Resistance | 15±10%Ω/PHASE(20℃) | Thrust | 450g |
| High Light | 2 Phases Copper Slider Stepper Motor,M3 Lead Screw Slider Stepper Motor,Dia 20mm Linear Stepper Motor |
||
Product Description

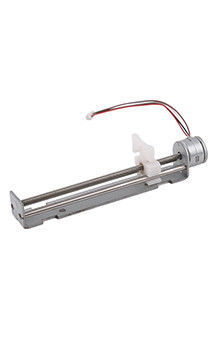

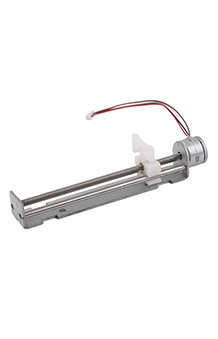

SM15-80L-T 2-phase copper slider stepper motor diameter 20 mm, with M3 lead screw, thrust 450g

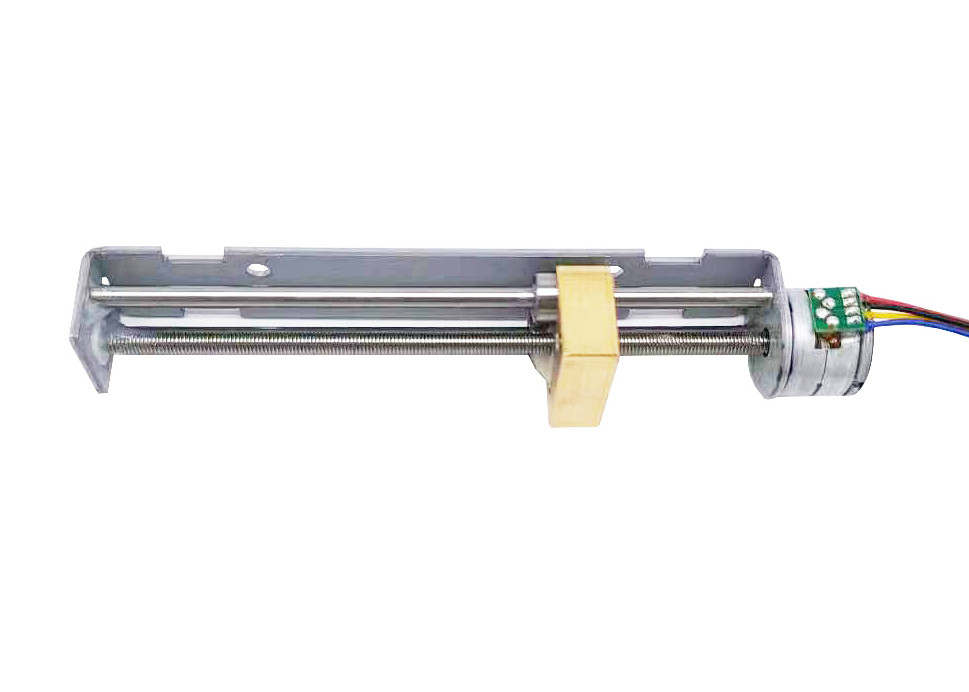

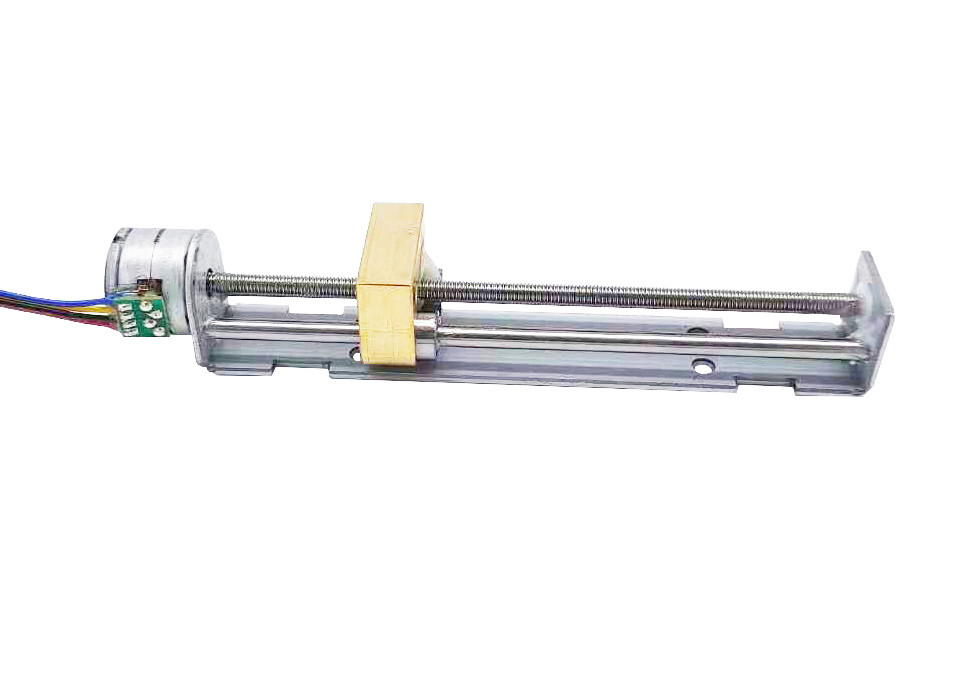

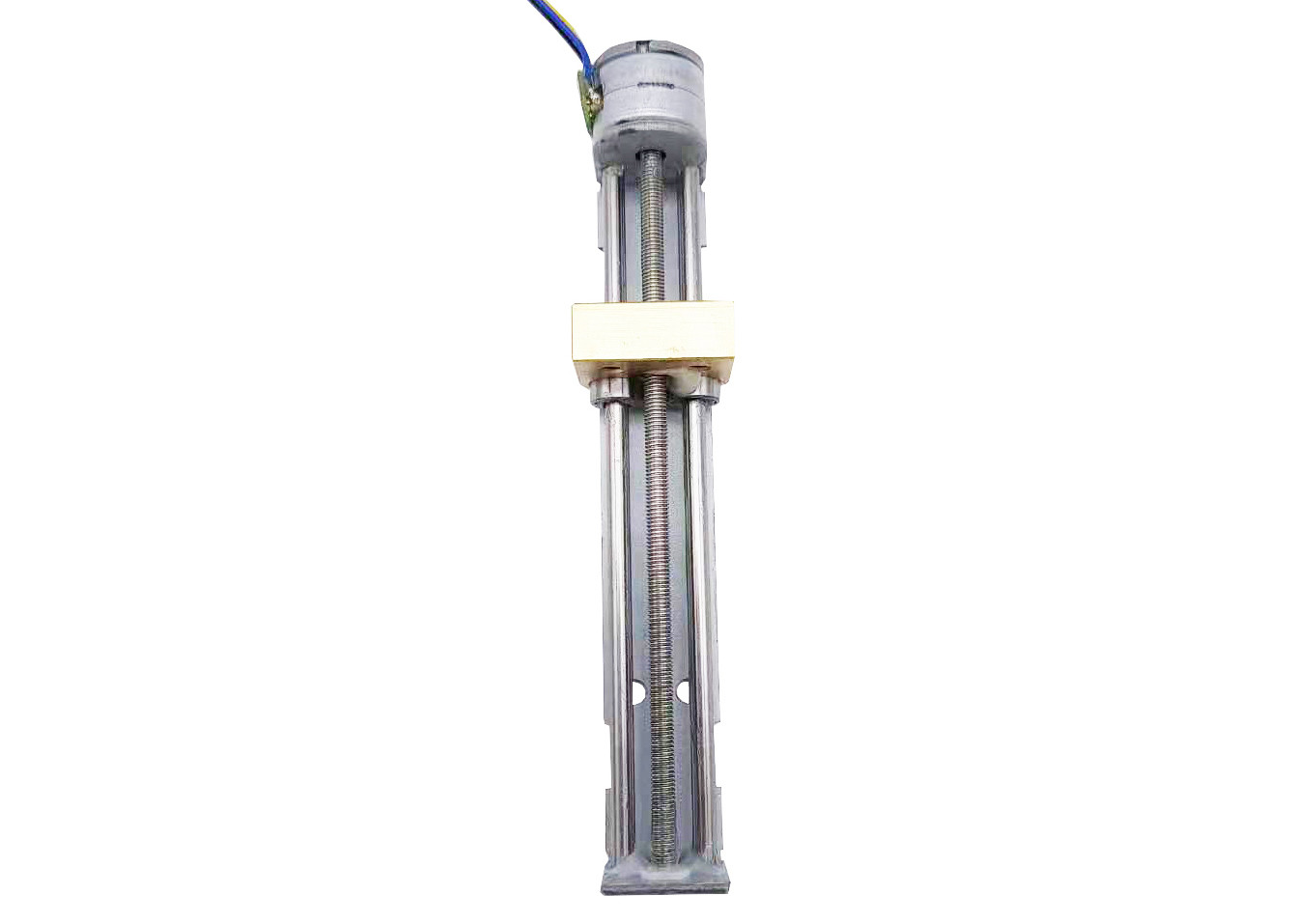

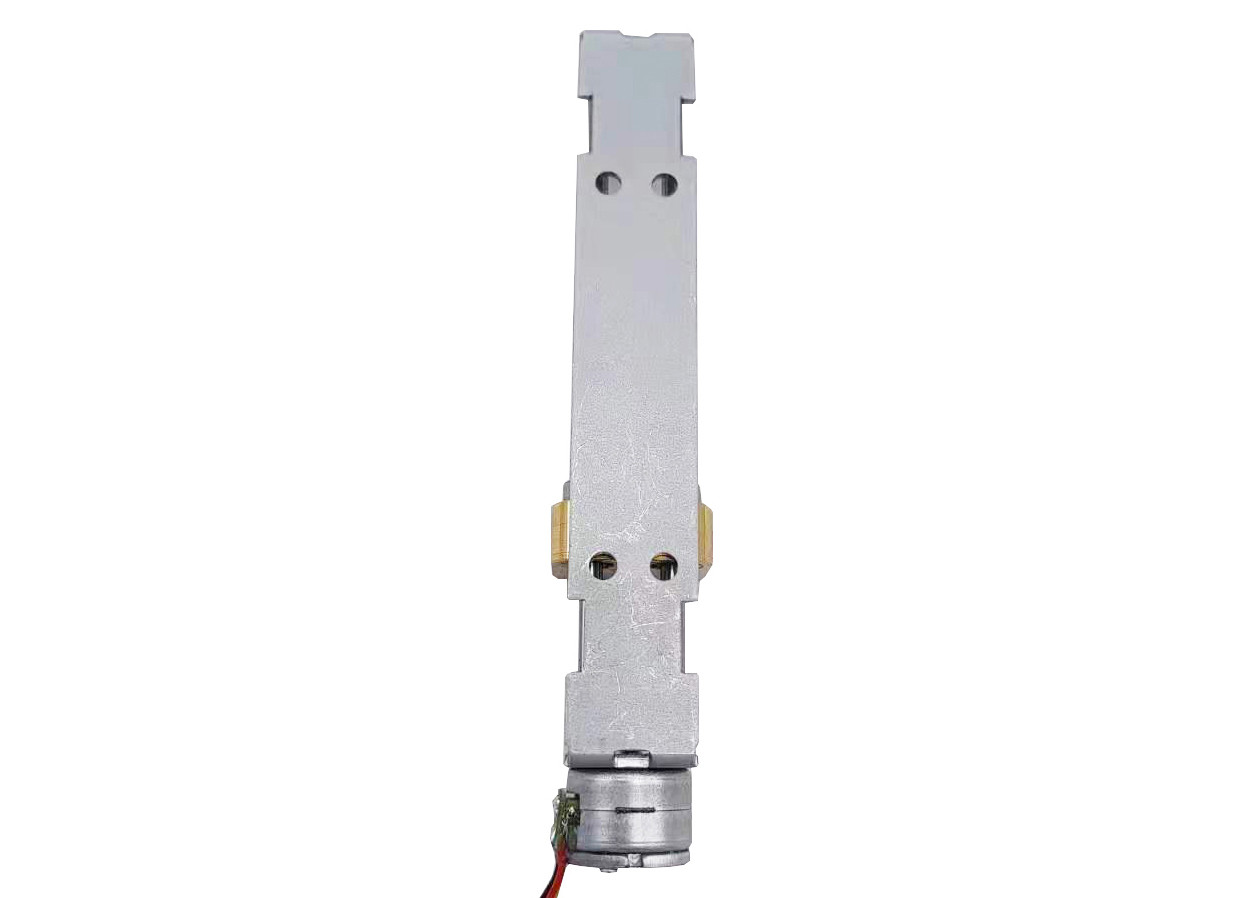

This is a 15mm linear motor. It has a copper slider with two linear bearings, with the help of linear bearings, the stability of the slider is greatly improved.
The lead screw is an ordinary M3*0.5P thread, so when the motor rotates once, the slider will move a pitch (0.5mm). The step angle of the motor is 18 degrees, so when the motor takes 20 steps, it will make one revolution. The step size of this motor is 0.025mm.
The motor is very useful for precise linear control, the thrust of the slider can reach more than 400g.
The stroke of this motor is 80mm. (stroke is how far it can travel from both ends)
Our team has more than ten years of experience in stepper motor design, development and production, and can realize product development and auxiliary design according to the special needs of customers!
Applications:
widely used for automatic equipment, medical equipment, precision measuring instruments, engraving machines, other small linear slide devices, etc.
Mechanical Dimension:MM
Parameters:
|
Model No. |
SM15-80L |
|
|
Coil Resitance |
15±10%Ω/PHASE(20℃) |
|
|
voltage |
6 V DC |
|
|
No. of phases |
2 phases |
|
|
Current Per Phase |
400mA/PHASE |
|
|
Step Angle |
18°/STEP |
|
|
Exiting Method |
2 PHASES EXCITATION |
|
|
Drive Mode |
BIPOLAR DRIVE |
|
|
Pull-Out Thrust |
|
|
|
Max Response Frequency |
More Than 1200 pps |
|
|
Max Starting Frequency |
More Than 900 pps |
|
|
Insulation Class |
Class E For Coils |
|
|
Insulation Strength |
100 V AC FOR ONE SECOND |
|
|
Insulation Resistance |
50mΩ DC 500 V |
|
|
Operating Temperature |
-0~+55℃ |
|
|
Motor Surface Temperature |
80℃ or less |
1) CameraMain Application
2) Optical instruments
3) Lenses
4) Precision medical devices
5) Automatic door locks
Product Detail Presentation
Type Of Wire Connect For Reference
The motor input part of the FPC, but can according to the customer demand can be changed to a connecting line needle, PCB and other forms.
