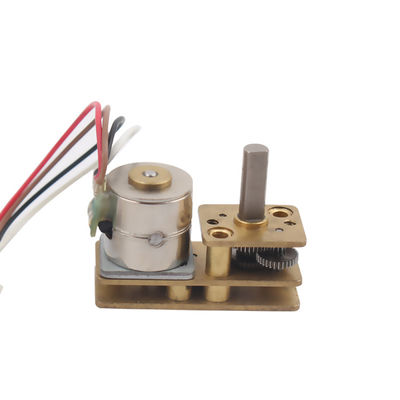

5v 10mm Metal Gear Motor / Mini Dc Gear Motor For Precision Instruments VSM10-817G

Place of Origin Jiangsu, China (Mainland)
Brand Name VIC-TECH
Certification RoHS
Model Number VSM10-817G
Minimum Order Quantity 1Unit
Price $7~$15/Unit
Packaging Details Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit
Delivery Time 15-30 work days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000000 Units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Step Angle(degrees) 18 Degree Phase 2
Voltage 5V Current / Phase 280mA/Phase
Resistance 39Ω±10% Weight 13g
Rotation CW/CCW Type Permanent Magnet
High Light

miniature dc gear motor

,

metal gear dc motor

Leave a Message
Product Description

5v 10mm micro geared stepper motor for Stepping motor medical instruments and precision instruments

All parts of the product are processed in the precision equipment, while the use of advanced and reliable assembly process, which is the product with high transmission efficiency, low noise, high reliability characteristics

Reduction ratio of 50 100 150 200 350 380, can be customized according to the needs of the 500 700 1000

Customers can choose the deceleration ratio according to the different requirements of the torque speed

Our team has more than 10 years experience in the design, development and production of micro motors, so we can develop and design the products according to the special needs of customers!

5v 10mm Metal Gear Motor / Mini Dc Gear Motor For Precision Instruments VSM10-817G 0



Mechanical Dimension:MM

5v 10mm Metal Gear Motor / Mini Dc Gear Motor For Precision Instruments VSM10-817G 1

Technical Features

VSM10-817G is series 1024GB reducer motor is the use of 10MM stepper motor and 10*24mm reducer special connection of special products. Suitable for laser instrument, medical equipment, optical fiber splicer, etc.. Matching deceleration

The speed decreases and the torque increases.

All parts of the product are processed in the precision equipment, while the use of advanced and reliable assembly process, which is the product with high transmission efficiency, low noise, high reliability characteristics

Reduction ratio of 50 100 150 200 350 380, can be customized according to the needs of the 500 700 1000

Customers can choose the deceleration ratio according to the different requirements of the torque speed

Our team has more than 10 years experience in the design, development and production of micro motors, so we can develop and design the products according to the special needs of customers!



Customer needs is the direction of our efforts, please feel free to contact!

Typical Applications

  • Intelligent Security Products

  • Camera Lenses

  • Door Locks

  • Wearable device



Specifications

Product Name 10mm micro stepper motor
Model VSMVSM10-817G
Rated Voltage 5 V
Current Per Phase  130mA /phase
Coil Resistance 39Ω±10%
No. Of phase 2  Phases
Step Angle 18 degree
Excitation Method 2 Phase Excitation
Drive Mode Bipolar Drive
MAX. STARTING FREQUENCY 900 PPS min. (AT 5.0 V DC)
MAX. SLEWING FREQUENCY 1200 PPS min. (AT 5.0 V DC)
PULL IN TORQUE 3.5 gf-cm min. (AT 500 PPS , 5.0V DC)
PULL OUT TORQUE 4.2 gf-cm min. (AT 500 PPS , 5.0V DC)
Insulation Class Class E for Coils
Insulation Strength 100V AC FOR ONE SECOND
Insulation Resistance 50MΩ DC 500 V
Operating Temperature Range -0~+55 ℃
Weight 13g
OEM & ODM SERVICE AVAILABLE



Competitive Advantage

  • High quality and the best price.
  • Fast deliver,storage company and rich inventory
  • Near Shanghai port, the traffic is very convenient.

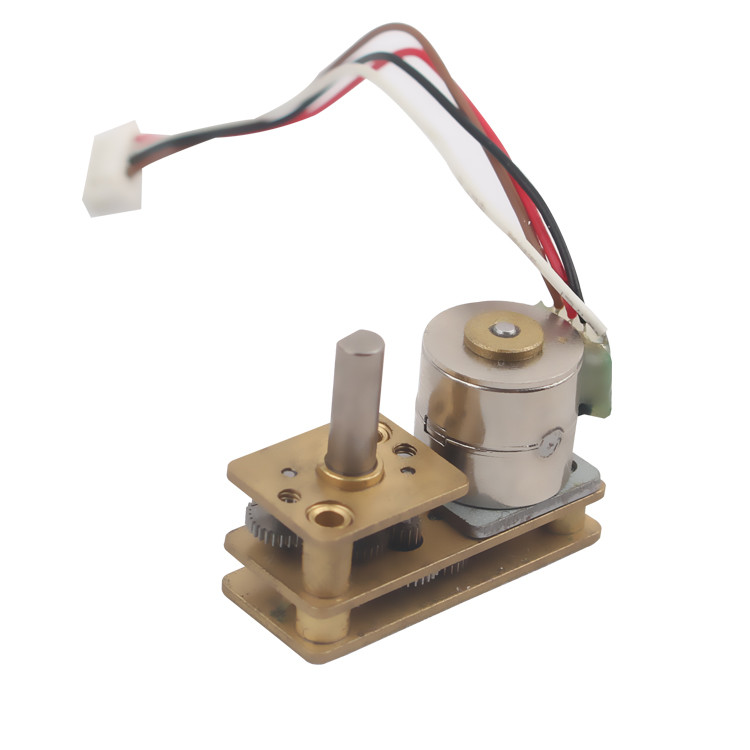

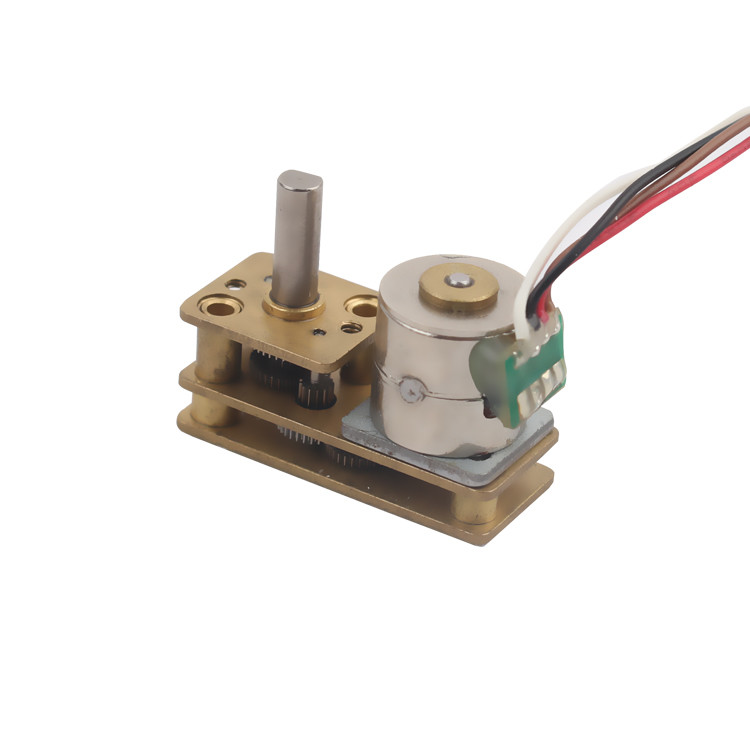

Product Detail Presentation

5v 10mm Metal Gear Motor / Mini Dc Gear Motor For Precision Instruments VSM10-817G 25v 10mm Metal Gear Motor / Mini Dc Gear Motor For Precision Instruments VSM10-817G 3



Type Of Wire Connect For Reference

Motor input method with Pin type, FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

5v 10mm Metal Gear Motor / Mini Dc Gear Motor For Precision Instruments VSM10-817G 4



Type of Fixture Cover

The regular models are shown in the figure, and the special sizes can be customized.

5v 10mm Metal Gear Motor / Mini Dc Gear Motor For Precision Instruments VSM10-817G 5
