1.8 degree step angle NEMA 8-axis hybrid stepper motor 20mm diameter 2-phase 5V stepper motor
| Place of Origin | China |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS, ISO9001 |
| Model Number | 20C0101-1 |
| Minimum Order Quantity | 1Unit |
| Price | $42.5~$70/Unit |
| Packaging Details | Standard export package in corrugated carton (Mass production). |
| Delivery Time | 15-30 work days |
| Payment Terms | Western Union, T/T, L/C, MoneyGram |
| Supply Ability | 100000 Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Lead Screw Diameter | 3.5mm | Lead Screw Lead | 0.3mm |
|---|---|---|---|
| Linear Travel Per Step | 0.0015mm/step | Step Angle | 1.8° |
| Rated Voltage | 5.0V | Motor’s Phases | 2 Phases |
| High Light | 1.8 Degree Hybrid Stepping Motor,2 Phase 5V Hybrid Stepping Motor,NEMA 8 Linear Stepper Motor |
||
Product Description

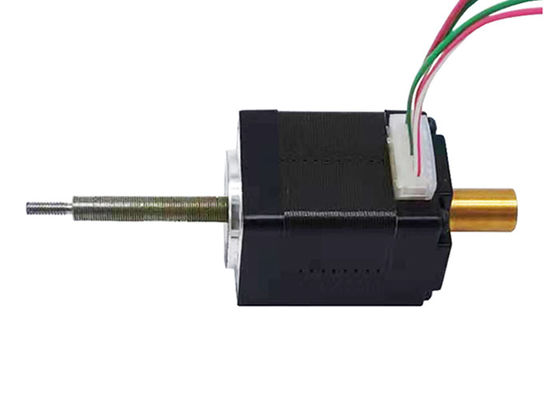

20C0101 20mm 2 Phase 5V 1.8 Degree NEMA 8 Through Shaft Hybrid Stepping Motor
Our team has more than 10 years of experience in stepper motor design, development and production, and can realize product development and auxiliary design according to the special needs of customers!
Customer needs are our efforts, please feel free to contact us!
Design Layout (Unit:mm):
Parameter sheet:
|
Model No. |
20C0101-1 |
|
Lead screw diameter |
3.5mm |
|
Lead screw lead |
0.3mm |
|
Linear travel per step |
0.0015mm/step |
|
Motor’s phases |
2 phases |
|
Step Angle |
18° |
|
Rated voltage |
Rated voltage |
|
Rated current/phase |
0.24A |
|
Resistance/phase |
20.4Ω±10% |
|
Inductance/phase |
5.0mH±20% |
|
Insulation class |
B |
|
Insulation resistance |
100MΩ(500VDC) |
|
Heat rise |
80℃ |
|
Minimal thrust/300pps |
2.4KG |
Competitive Advantage
-
High quality and the best price.
-
Fast deliver,storage company and rich inventory
-
Near Shanghai port, the traffic is very convenient.
