Linear Guide Slide Rail Screw Lead Motion Permanent Magnet Stepper Motor 20mm

Place of Origin Jiangsu, China (Mainland)
Brand Name VIC-TECH
Certification RoHS
Model Number SM20-21L
Minimum Order Quantity 1
Price $4.5-$15
Packaging Details Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box.
Delivery Time 15~30 days after the sample is paid
Payment Terms Western Union, MoneyGram,Credit Card,VISA,, T/T
Supply Ability 10000 PCS 45days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Permanent Magnet Step Angle 18°
Phase 2 Current / Phase 800mA
Rated Voltage 12V Coil Resistance 20Ω±10%
Holding Torque 800gf.cm Stroke 21mm
High Light

20mm Permanent Magnet Stepper Motor

,

Screw Lead Permanent Magnet Stepper Motor

,

Linear Guide Slider Stepper Motor

Leave a Message
Product Description

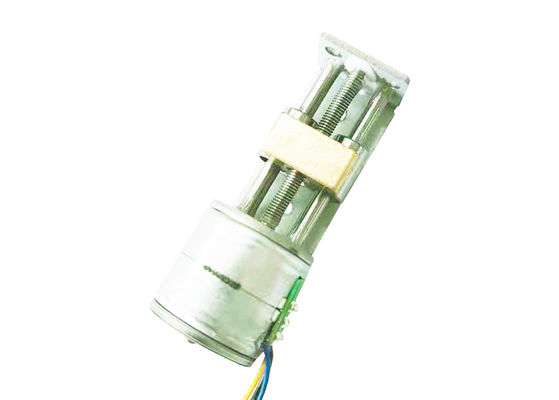

Mini Linear Guide Slide Rail CNC Small Stage Actuator Screw Lead Motion 20mm Permanent Magnet Robot Part Stepper Motor



SM20-21L is a precision micro step motor, the output shaft with a pitch of 0.5mm of the screw, through the screw and the screw rod supporting the turn of the screw into a thrust.
Motor basic step angle is 18 degrees, the motor running 20 steps every week, so the resolution of displacement can reach 0.02mm, to achieve the purpose of precision control.
Actuator aspects using subdivision drive way to meet.
Because of its small size, high precision, easy to control and other excellent characteristics, so this micro stepper motor is widely used in the camera, optical instruments, lenses, precision medical devices, automatic door locks and other fields.
The motor input part of the FPC, but can according to the customer demand can be changed to a connecting line needle, PCB and other forms.
The mounting bracket can be changed according to the customer's request.

Linear Guide Slide Rail Screw Lead Motion Permanent Magnet Stepper Motor 20mm 0

Linear Guide Slide Rail Screw Lead Motion Permanent Magnet Stepper Motor 20mm 1



Technical Features

Because of its small size, high precision, easy to control and other excellent characteristics, so this micro stepper motor is widely used in the camera, optical instruments, lenses, precision medical devices, automatic door locks and other fields.
The motor input part of the FPC, but can according to the customer demand can be changed to a connecting line needle, PCB and other forms.

Main Application

1) Camera

2) Optical instruments

3)  Lenses

4)  Precision medical devices

5)  Automatic door locks

Specifications

PRODUCT NAME

20mm lead screw motor

MODEL

SM20-21L

MAX. STARTING FREQUENCY

MORE THAN 1100 PPS

MAX. SLEWING FREQUENCY

MORE THAN 1600 PPS

PULL IN TORQUE

MORE THAN 800g (AT125 PPS , 12V DC)

INSULATION CLASS

CLASS E FOR COILS

INSULATION STRENGTH

100 V AC FOR ONE SECOND

INSULATION RESISTENCE

50 MΩ (DC 100 V)

OPERATING TEMPERATURE RANGE

-0 ~+55 ℃

OEM & ODM SERVICE

AVAILABLE





Product Detail Presentation

Stepper motor manufacturer 20mm 5v 12v 24v  Micro linear stepping motor 1000 rpm 0.03 Nm linear screw stepping motor



 Linear Guide Slide Rail Screw Lead Motion Permanent Magnet Stepper Motor 20mm 2                                                                      high quality 12V Micro Linear Motion slide 2-phase 4-wire Miniature with Stepper Motor



Linear Guide Slide Rail Screw Lead Motion Permanent Magnet Stepper Motor 20mm 3

Type Of Wire Connect For Reference

Motor input method with Pin type,FPC, PCB, Lead wire etc. These can be customized according to customer needs.

Linear Guide Slide Rail Screw Lead Motion Permanent Magnet Stepper Motor 20mm 4
