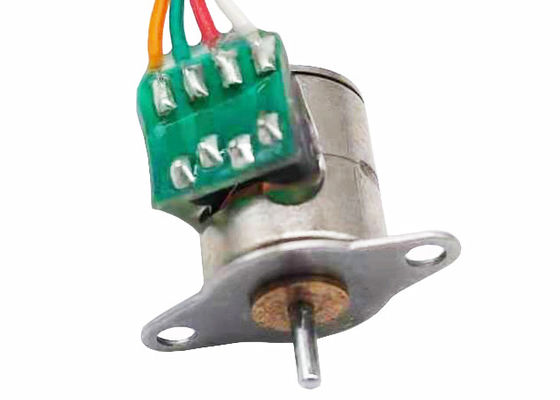

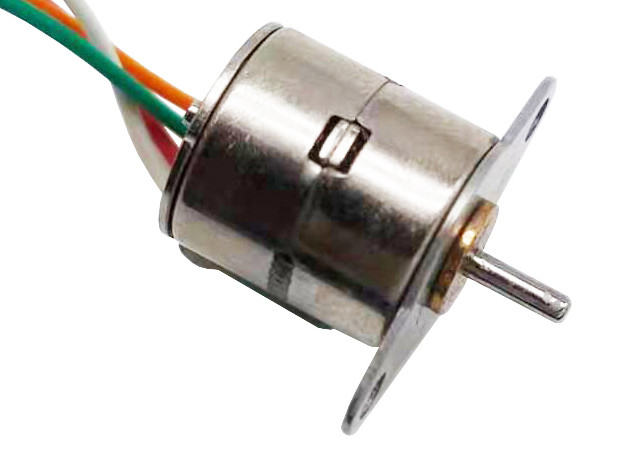

8mm Mini Permanent Magnet Stepper Motor 3.3v 2 Phase 18°
| Place of Origin | Jiangsu, China (Mainland) |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | VSM0801 |
| Minimum Order Quantity | 1Unit |
| Price | $2~$5/Unit |
| Packaging Details | intertional carton box |
| Delivery Time | 15-30 work days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 1000000 Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Step Angle(degrees) | 18°/STEP | Phase | 2 Phases |
|---|---|---|---|
| Voltage | 3.3 V DV | Resistance | 21Ω±7% |
| Weight | 3g | Type | Permanent Magnet |
| High Light | Permanent Magnet Stepper Motor 3.3v,Mini Permanent Magnet Stepper Motor 3.3v,Dual Phase PM Stepper Motor |
||
Product Description
VSM0801 8mm Permanent Magnet Stepper Motor3.3v 2 Phase 18° Chinese Mini Motor Manufacturer
VSM0801 is precision stepper motor , widely used in lenze, camara, medical apparatus and instruments and laser instruments etc
This product is precision micro step motor body outside diameter 8mm,body length 8.8mm, Out of the shaft diameter 1mm,the length of the shaft can be changted according to the requirements ,and can be equipped with gear wheel
Corresponding output devices such as worm,screw and so on
Motor basic step angle is 18 dagrees, the motor running 20 steps per week.
The motor input part of the FPC, but can according to the customer demand can be changed to a connecting line needle, PCB and other forms.
The mounting bracket can be changed according to the customer's request.
Mechanical Dimension:MM
Technical Features
-
10*9mm 10mm permanent magnet stepper motor, can be equipped with 10mm or 12mm gearbox
-
Compliance with EU Environment Standard
-
Stepper motor with gearbox,low consumption,low noise,high torque
-
Reduction ration:1:3;1:5;1:10;1:30;1:50;1:100;1:150;1:210;1:298;1:380
-
All parameters can be customized
Typical Applications
-
Intelligent Security Products
-
Camera Lenses
-
Door Locks
-
Wearable device
Specifications
|
Model No. |
VSM0801 |
|
Coil Resitance |
21Ω±7% |
|
Rated voltage |
3.3 V DC |
|
No. of phases |
2 phases |
|
Step Angle |
18°/STEP |
|
Excitation Method |
2 Phases Excitation |
|
Drive Mode |
BI-Polar-Drive |
|
Pull-in Torque |
More Than 1.5 gf-cm(AT 1000 PPS,3.3V) |
|
Pull-out Torque |
More Than 2.8 gf-cm(AT 1000 PPS,3.3V) |
|
Max Starting Frequency |
More Than 1100 PPS(AT 3.3V) |
|
Max Slewing Frequency |
More Than 2500 PPS(AT 3.3V) |
|
Insulation Class |
CLASS E FOR COILS |
|
Insulation Strength |
100V AC FOR ONE SECOND |
|
Insulation Resistance |
1.0mΩ(DC 100 V) |
|
Operating Temperature |
-10~60℃ |
Competitive Advantage
- High quality and the best price.
- Fast deliver,storage company and rich inventory
- Near Shanghai port, the traffic is very convenient.
Torque Curve For Reference
Type Of Wire Connect For Reference
Motor input method with Pin type, FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
Type of Fixture Cover
The regular models are shown in the figure, and the special sizes can be customized.
