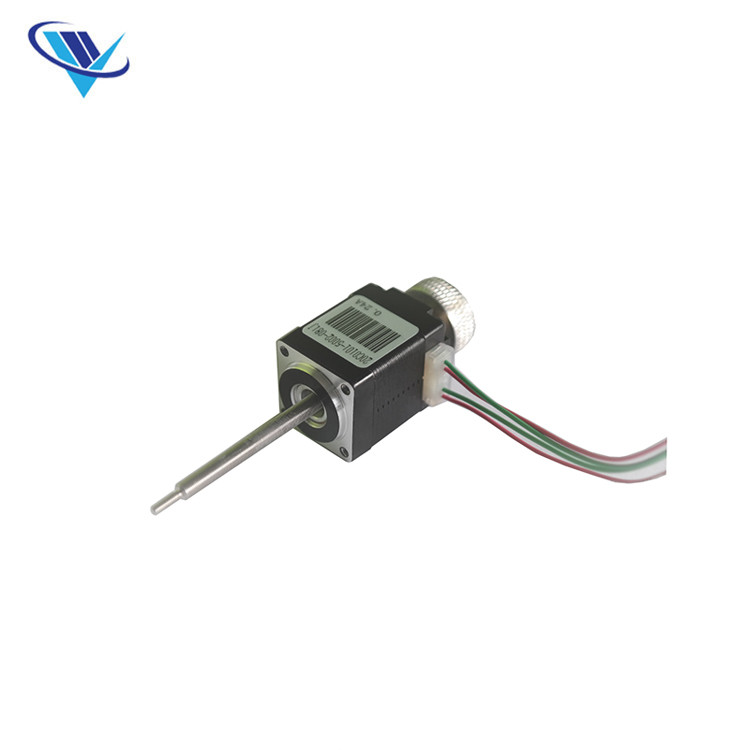

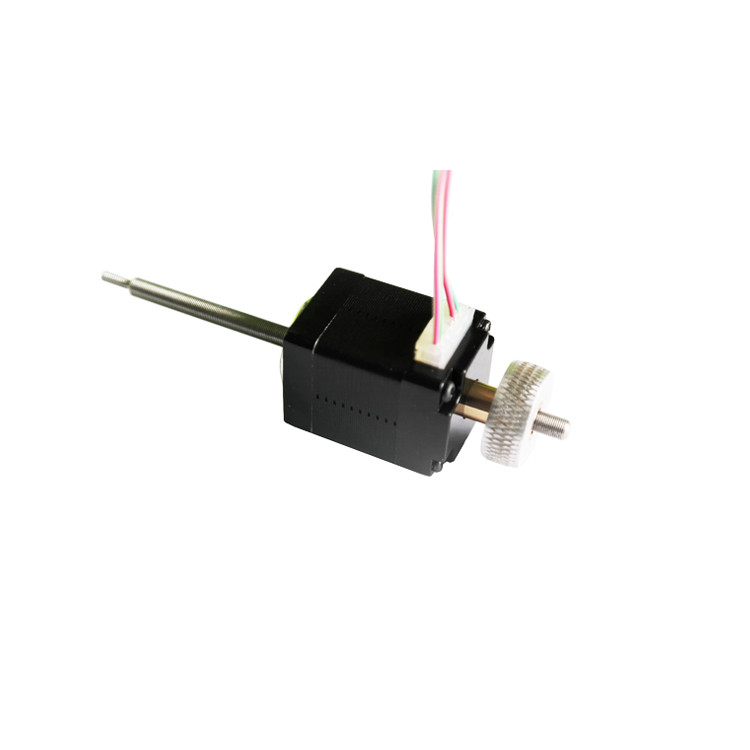

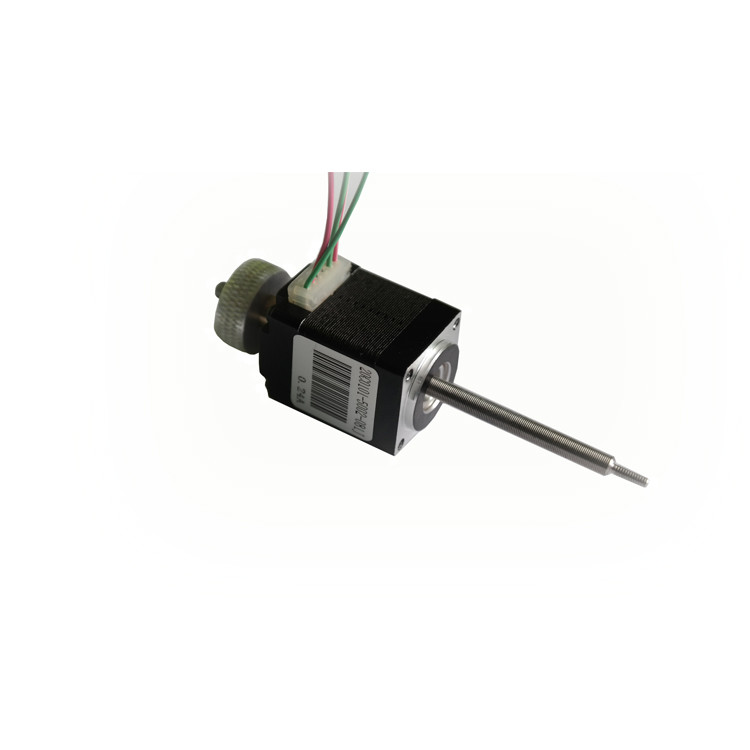

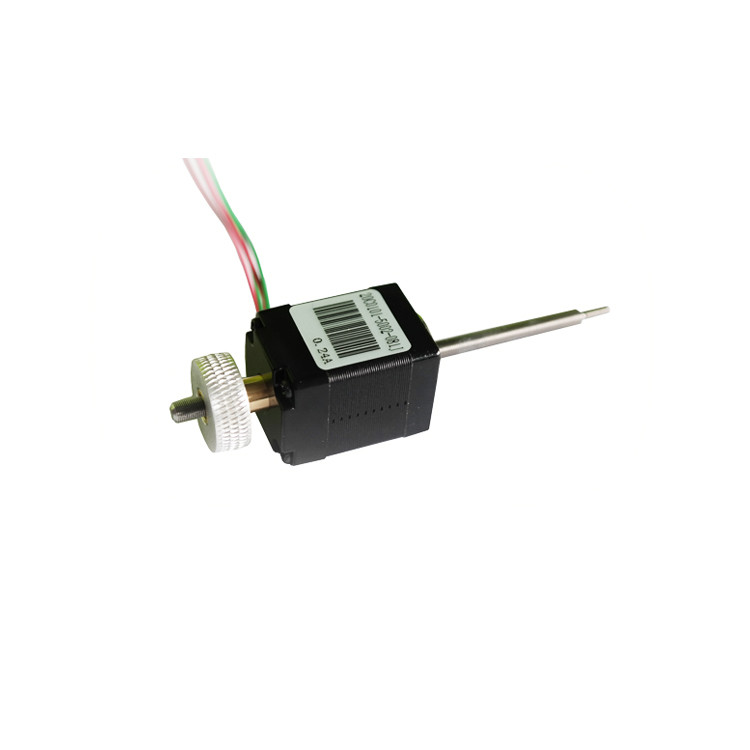

High-precision and high-quality trapezoidal screw 20mm diameter hybrid stepping motor
| Place of Origin | Jiangsu, China (Mainland) |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | 20C0101-5002-065J |
| Minimum Order Quantity | 1 Unit |
| Price | $42.5 - $70/ Units |
| Packaging Details | Standard export package, or can be customized |
| Delivery Time | 15-30 work days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 100000Units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Step Angle(degrees) | 1.8° | Motor Diameter | 20mm |
|---|---|---|---|
| Phase | 2 | Type | Hybrid |
| Rated Voltage | 5V | Current / Phase | 0.24A |
| High Light | 20mm Diameter Hybrid Stepping Motor,Trapezoidal Screw Hybrid Stepping Motor,20mm Diameter High Accuracy Stepper Motor |
||
Product Description
High-precision and high-quality trapezoidal screw 20mm diameter hybrid stepping motor
Our stepper motor series are: 20mm, 28mm, 35mm, 39mm, 42mm, 57mm, 60mm, 86mm, 110mm, 130mm. Two-phase, three-phase and four-phase hybrid stepping motor. The DC brushless motor range includes 42BLS, 57BL(S), 86BLS, and matching DC brushless drivers.
Therefore, the products are in line with ROHS requirements. Applications include robotics, industrial electronic automation equipment, medical equipment, advertising equipment, printing equipment, textile machinery and so on. Has been exported to the United States, Germany, Italy, Spain, the United Kingdom, Mexico, Brazil and other more than 20 countries.
Mechanical Dimension:MM
Typical Applications
- 3D Printer
- Monitoring Equipment
- Medical Machinery
- Vending Machine
- Engineering Vehicle
- CNC Engraving Machine
- ATM Machine
Specifications
| Motor diameter | 20mm |
| Motor type | Hybrid stepper motor |
| Step angle | 1.8 degree |
| Rated voltage | 5V |
| Rated current/phase | 0.24A |
| Resistance/phase | 20.4Ω±10% |
| Minimal Thrust /300pps | 2.4KG |
| Linear travel per step | 0.0015mm/step |
| Lead screw diameter | 3.5mm |
| Lead screw lead | 0.3mm |
The above products are only representative models, we can customize the products according to customer requirements. Includes the length and diameter of the shaft.Our company can also provide OEM services.
