VSM1068 Dia10mm Micro Stepper Motor With M2 Lead Screw

Place of Origin Jiangsu, China (Mainland)
Brand Name VIC-TECH
Certification RoHS
Model Number VSM1068
Minimum Order Quantity 1Unit
Price $2.15~$5/Unit
Packaging Details Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit
Delivery Time 15-30 work days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000000 Units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Step Angle(degrees) 18 Degree Phase 2 Phase
Voltage 5.0 V Resistance 50mΩ
Pull In Torque 2.0gf-cm Min(AT 500 PPS 5.0 V DC) Pull Out Torque 2.2gf-cm Min(AT 500 PPS 5.0 V DC)
Max. Starting Frequency 1000 PPS Min (AT 5.0 V DC) Max. Slewing Frequency 1800 PPS Min (AT 5.0 V DC)
High Light

Lead Screw Micro Stepper Motor

,

Dia10mm Micro Stepper Motor

,

Micro M2 Lead Screw Stepper Motor

Leave a Message
Product Description

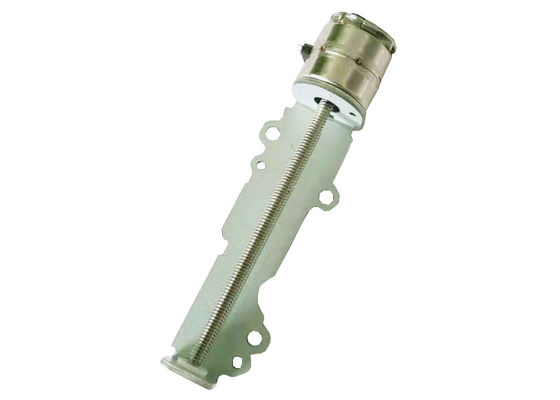

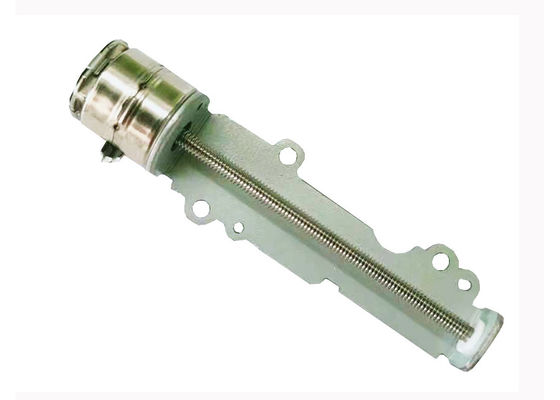

High quality long life 10mm micro stepper motor with M2 leadscrew

This is a high standard 10mm micro stepper motor with M2 screw motor. If you need our motor, please feel free to contact me



VSM1068 Dia10mm Micro Stepper Motor With M2 Lead Screw 0

Mechanical Dimension:MM

VSM1068 Dia10mm Micro Stepper Motor With M2 Lead Screw 1





Typical Applications

  • Intelligent Security Products

  • Camera Lenses

  • Door Locks

  • Wearable device



Specifications

VSM1068 Dia10mm Micro Stepper Motor With M2 Lead Screw 2VSM1068 Dia10mm Micro Stepper Motor With M2 Lead Screw 3VSM1068 Dia10mm Micro Stepper Motor With M2 Lead Screw 4

Product Name 10mm micro stepper motor
Rated Voltage 5.0 V DC
Current Per Phase 50mA /phase
Coil Resistance 55Ω±10%
No. Of phase 2 Phases
Step Angle 18 degree
Max. Starting Frequency 1000 PPS min (AT 5.0 V DC)
Max. Slewing Frequency 1800 PPS min (AT 5.0 V DC)
Pull-In Torque 2.0 gf.cm min(AT 500 PPS 5.0 V DC)
Pull-Out Torque 2.2 gf.cm min(AT 500 PPS 5.0 V DC)




Competitive Advantage

  • High quality and the best price.
  • Fast deliver,storage company and rich inventory
  • Near Shanghai port, the traffic is very convenient.



Type Of Wire Connect For Reference



Motor input method with Pin type, FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

VSM1068 Dia10mm Micro Stepper Motor With M2 Lead Screw 5



Type of Fixture Cover

The regular models are shown in the figure, and the special sizes can be customized.

VSM1068 Dia10mm Micro Stepper Motor With M2 Lead Screw 6



Product Detail Presentation



VSM1068 Dia10mm Micro Stepper Motor With M2 Lead Screw 7
