Hybrid DC Motor Controller With Automatic Semi - Flow Functions SWT-256M

Place of Origin Jiangsu, China (Mainland)
Brand Name VIC-TECH
Certification RoHS
Model Number SWT-256M
Minimum Order Quantity 1 Unit
Price $20~30/unit
Packaging Details Standard export package, or can be customized
Delivery Time 15 work days after confirming the payment
Payment Terms T/T, Western Union, MoneyGram,
Supply Ability 10000 Units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Motor Type Stepper Motor Voltage 12V
Weight 250g
High Light

micro stepper motor controller

,

4 wire stepper motor controller

Leave a Message
Product Description

micro stepper motor drive DC Motor Controller for permanent magnet stepper motor and hybrid motor

SWT-256M is a high-performance subdivided stepper motor driver designed by our factory using advanced pure sinusoidal precision current control technology. The pure sinusoidal precision current control technology adopted by SWT-256M can improve the above problems well, so that the running effect of the stepping motor is close to the servo level to some extent.
This drive also has multiple subdivisions, small size, multiple protections and automatic semi-flow functions. Users can use SWT-256M voltage up to 40VDC.

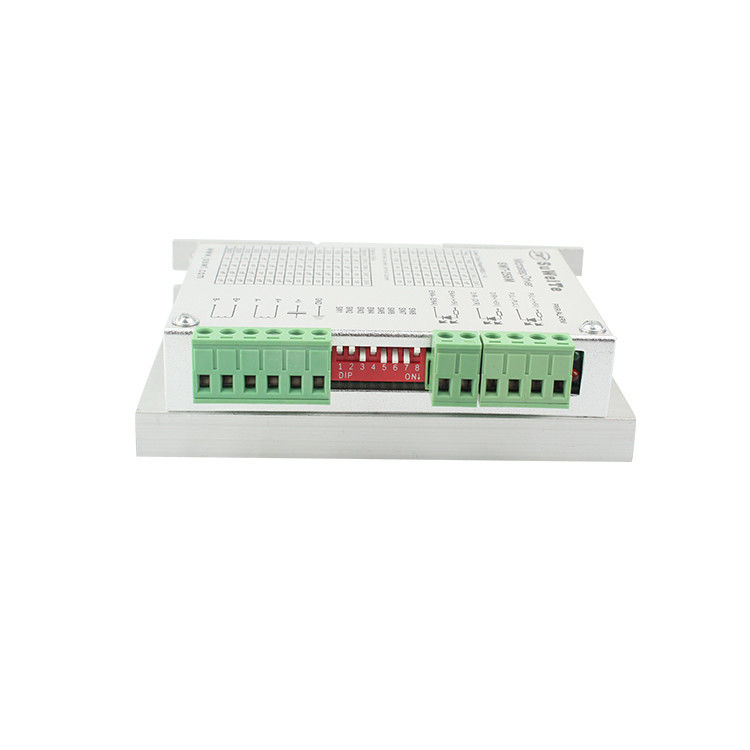

Hybrid DC Motor Controller With Automatic Semi - Flow Functions SWT-256M 0

Mechanical Dimension:MM

Hybrid DC Motor Controller With Automatic Semi - Flow Functions SWT-256M 1

Technical Features



I. Overview
SWT-256M is a high-performance subdivided stepper motor driver designed by our factory using advanced pure sinusoidal precision current control technology. The pure sinusoidal precision current control technology adopted by SWT-256M can improve the above problems well, so that the running effect of the stepping motor is close to the servo level to some extent.
This drive also has multiple subdivisions, small size, multiple protections and automatic semi-flow functions. Users can use SWT-256M voltage up to 40VDC.
Second, the wiring instructions
1.P1 weak wiring signal description
Signal function
PUL+(+5V) Pulse signal: pulse control signal, the rising edge of the pulse is valid at this time; P-5 is 4-5V at high level and 0-0.5V at low level for reliable response, the pulse width is greater than 1μS. If +12V or +24V is used, string resistor current limiting is required.
PUL-(PUL)
DIR+ (+5V) direction signal: high/low level signal, in order to ensure reliable response of the motor, corresponding to the forward and reverse of the motor. The direction signal should be established at least 5μs before the pulse signal. The initial running direction of the motor is related to the wiring of the motor. Interchanging any phase winding (such as A+, A-exchange) can change the direction of the initial running of the motor. When DIR-high level 4 -5V, 0-0.5V at low level.
DIR-(DIR)
ENA+(+5V) Enable signal: This input signal is used to enable/disable, high level enable, and the driver does not work when low level. Under normal circumstances, you must not connect, so that it is suspended and automatically enabled.
ENA-(ENA)
2.P2 strong interface description
Interface function
GND DC power ground
+V DC power supply is positive, any value between +30V-+40V can be used, but the recommended value is +36VDC.
A+, A- Motor A phase. A+, A-intermodulation, can change the direction of motor running.
B+, B- Motor B phase. B+, B-intermodulation, can change the direction of motor running.



​Product Detail Presentation

Hybrid DC Motor Controller With Automatic Semi - Flow Functions SWT-256M 2Hybrid DC Motor Controller With Automatic Semi - Flow Functions SWT-256M 3

Current, subdivision DIP switch setting

Working (dynamic) current setting



Current peak   SW1 SW2 SW3
1.4A   OFF OFF OFF
2.1A   ON OFF OFF
2.7A   OFF ON OFF
3.2A   ON ON OFF
3.8A   OFF OFF ON
4.3A   ON OFF ON
4.9A   OFF ON ON
5.6A   ON ON ON



Subdivision setting

Subdivision accuracy is set by SW5-SW8 four-position dial switch



Subdivision factor

Steps / circle

(1.8°/full step)

SW5 SW6 SW7 SW8
2 400 OFF ON ON ON
4 800 ON OFF ON ON
8 1600 OFF OFF ON ON
16 3200 ON ON OFF ON
32 6400 OFF ON OFF ON
64 12800 ON OFF OFF ON
128 25600 OFF OFF OFF ON
5 1000 ON ON ON OFF
10 2000 OFF ON ON OFF
20 4000 ON OFF ON OFF
25 5000 OFF OFF ON OFF
40 8000 ON ON OFF OFF
50 10000 OFF ON OFF OFF
100 20000 ON OFF OFF OFF
125 25000 OFF OFF OFF OFF

(1) What is a stepper motor and a stepper drive?Driver FAQ User Answers (Q&A)



Stepper motor is a special motor specially designed for precise control of speed and position. Its rotation is operated step by step at a fixed angle (called "step angle"), so it is called stepper motor. Its characteristic is that there is no accumulated error, every pulse signal sent from the controller is received, and the motor runs at a fixed angle under the drive of the driver, so it is widely used in various open-loop control.


The stepping driver is a power amplifier that can operate the stepping motor. It can convert the pulse signal sent by the controller into the power signal of the stepping motor. The speed of the motor is proportional to the pulse frequency, so the control pulse frequency can be precisely adjusted. Speed, the number of control pulses can be accurately positioned.



(2) What is the breakdown of the drive?



The stepper motor is determined by its own unique structure, and the “inherent step angle of the motor” (such as 1.2°/0.6°) is indicated at the factory. However, in many precision control and occasions, the angle of the whole step is too large, affecting the control precision, and the

vibration is too large. Therefore, it is required to complete the inherent step angle of a motor in many steps. This is called a subdivision drive and can realize this function. The electronic device is called a subdivision driver.

(3) What are the advantages of subdivision drivers?

Because the step angle that has passed each step is reduced, the step uniformity is improved, so the control accuracy can be improved.

The vibration of the motor can be greatly reduced. The low-frequency oscillation is an inherent characteristic of the stepper motor. Subdivision is the best way to eliminate it.



It can effectively reduce torque ripple and increase output torque.

These advantages are generally recognized by users and bring them benefits, so it is recommended that you use subdivision drivers.



(4) Why does my motor only work in one direction?

  • The possible direction signal is too weak, or the wiring polarity is wrong, or the signal voltage is too high to burn out the direction current limiting resistor.​
  • The pulse mode does not match, the signal is pulse/direction, the driver must be set to this mode; if the signal is CW/CCW (double pulse mode), the driver must also be in this mode, otherwise the motor will only run in one direction.
