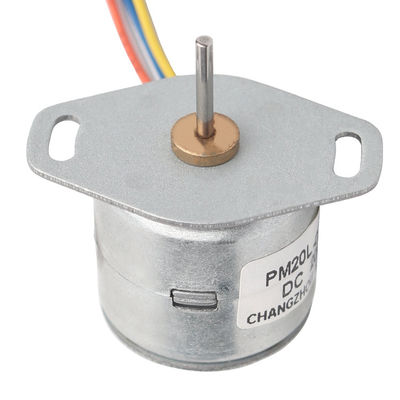

20mm Permanent Magnet Stepper Motor 2 phase 4 wire, 18° Stepping Angle, 0.08N.m Holding Torque

Place of Origin China
Brand Name VIC-TECH
Certification RoHS
Model Number 20L-020-104A
Minimum Order Quantity 1 Unit
Price $3.2-$5/unit
Packaging Details Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit
Delivery Time 15-30 work days
Payment Terms MoneyGram, T/T, Western Union, T/T
Supply Ability 1000000units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Step Angle 18 ° Voltage 6.0 V
Resistance 30 Ω ± 10% Phase 2
Type Permanent Magnet Current 200 MA
High Light

small permanent magnet motor

,

permanent magnet dc motor

,

Game Machine PM Stepper Motor

Leave a Message
Product Description

20L-020 20mm permanent magnet stepper motor 2 phase 4 wire stepper motor



The stepping motor with a diameter of 20 has a stepping angle of 18degrees. Each part is made of precision molds. Therefore, compared with similar products, this product has the advantages of stable rotation, small positioning torque and high efficiency.
All metal parts such as motor casings are treated by environmentally friendly plating. The appearance is exquisite and can be used in relatively harsh environments.



Precision medical equipment, automatic door locks and other fields

Motor input part icon for the light, but can according to the customer demand can be changed to FPC cable, PCB and other forms

At the same time we can complete the corresponding drive system to meet customer needs!

Our team has more than 10 years experience in the design, development and production of micro motors, so we can develop and design the products according to the special needs of customers!



Customer needs is the direction of our efforts, please feel free to contact!

20mm Permanent Magnet Stepper Motor 2 phase 4 wire, 18° Stepping Angle, 0.08N.m Holding Torque 0

Mechanical Dimension:MM

20mm Permanent Magnet Stepper Motor 2 phase 4 wire, 18° Stepping Angle, 0.08N.m Holding Torque 1

Typical Applications

The 20mm permanent magnet stepper motor is a versatile component that finds application across a wide range of industries and applications, including medical equipment, precision instruments, robotics, factory automation, gaming machines, ATM equipment, and security devices. and so on.



Medical Equipment:

The 20mm permanent magnet stepper motor is widely used in medical equipment due to its high precision and accuracy. It is used in devices such as infusion pumps, diagnostic equipment, and surgical robots. These devices require precise and accurate movement, and the stepper motor provides the necessary control for these applications. The motor's compact size also makes it ideal for use in smaller medical devices.



Precision Instruments:

The permanent magnet stepper motor is used in precision instruments, such as laboratory equipment and scientific instruments. The motor's high precision and accuracy ensure that the equipment moves precisely as needed, resulting in accurate readings and measurements. The motor's low noise and vibration also make it suitable for use in such applications.



Robotics:

The 20mm permanent magnet stepper motor is widely used in robotics applications, such as robotic arms and mobile robots. The motor's high torque and accuracy provide the necessary control for these applications, allowing the robot to move precisely and accurately. The motor's compact size also makes it ideal for use in smaller robots.



Factory Automation:

The permanent magnet stepper motor is widely used in factory automation applications, such as conveyor systems, material handling equipment, and assembly line robots. The motor's high torque and accuracy make it ideal for these applications, where precision and reliability are critical. The motor's low noise and vibration also make it suitable for use in factory environments.



Gaming Machines:

The 20mm permanent magnet stepper motor is used in gaming machines, such as slot machines and arcade games. The motor's high torque and accuracy provide the necessary control for these applications, allowing the game to operate smoothly and reliably. The motor's compact size also makes it ideal for use in smaller gaming machines.



ATM Equipment:

The permanent magnet stepper motor is used in ATM equipment, such as cash dispensers and deposit machines. The motor's high precision and accuracy ensure that the equipment operates smoothly and reliably, allowing customers to perform transactions quickly and efficiently. The motor's low noise and vibration also make it suitable for use in ATM environments.



Security Devices:

The 20mm permanent magnet stepper motor is used in security devices, such as door locks and access control systems. The motor's high torque and accuracy provide the necessary control for these applications, ensuring that the device operates securely and reliably. The motor's low noise and vibration also make it suitable for use in quiet environments.



the 20mm permanent magnet stepper motor is a versatile component with a wide range of applications across many industries. Its high precision, accuracy, torque, low noise and vibration, and compact size make it ideal for use in medical equipment, precision instruments, robotics, factory automation, gaming machines, ATM equipment, and security devices.



Specifications



Product Name 20 mm permanent magnet stepper motor
Model 20L-020-104A
Rated Voltage  6.0 V
Coil Resistance 30 Ω ± 10%
No. Of phase 2 Phases
Step Angle 18 degree
Detent Torque 30.0 gf-cm max. (No exiting 0 V DC)
Pull-Out Torque 79 gf-cm min. (AT 0 PPS, 10.2 V DC)
Max. Starting Frequency 400 PPS min. (AT 10.2 V DC)
Max. Slewing Frequency 450 PPS min. (AT 10.2 V DC)
Insulation Class Class E for Coils
Insulation Strength 600 V AC for One Second
Insulation Resistance 500 MΩ (DC 100 V)
Operating Temperature Range -20~+70 ℃
Weight 28 g(Ref.)
OEM & ODM SERVICE AVAILABLE




Competitive Advantage

The 20mm permanent magnet stepper motor is a highly competitive component due to its unique set of advantages over other types of stepper motors. Some of the key advantages of the 20mm permanent magnet stepper motor include:



High Quality: The 20mm permanent magnet stepper motor is manufactured to the highest quality standards, ensuring reliable and long-lasting performance. The motor's high precision and accuracy make it ideal for use in applications where accuracy is critical.



Best Price: The 20mm permanent magnet stepper motor is competitively priced, making it an affordable option for a wide range of applications. The motor's low cost and high performance make it an excellent choice for cost-conscious applications.



Fast Delivery: The motor is available for fast delivery, ensuring that customers receive their orders promptly. The motor's availability and fast delivery make it an ideal choice for time-sensitive applications.



Warehousing: The motor is stored in a well-equipped warehouse facility, ensuring that it is protected from damage and is readily available for shipping. The warehouse facility also ensures that the motor is easily accessible to customers.



Rich Inventory: The motor has a rich inventory, ensuring that customers can easily find the motor they need for their application. The rich inventory also ensures that customers can quickly receive their orders.



Convenient Location: The motor's warehouse is located near Shanghai port, making it easily accessible to customers worldwide. The convenient location also ensures that the motor is readily available for shipping.



Reliable Performance: The 20mm permanent magnet stepper motor provides reliable and consistent performance, ensuring that it operates smoothly and efficiently in a wide range of applications. The motor's high torque and accuracy make it an ideal choice for applications that require precise and reliable performance.



In conclusion, the 20mm permanent magnet stepper motor's competitive advantages are its high quality, affordable price, fast delivery, warehousing, rich inventory, convenient location, and reliable performance. These advantages make it an excellent choice for a wide range of applications, from medical equipment to factory automation and gaming machines.

Torque Curve For Reference

20mm Permanent Magnet Stepper Motor 2 phase 4 wire, 18° Stepping Angle, 0.08N.m Holding Torque 2

Type of Fixture Cover



The regular models are shown in the figure, and the special sizes can be customized.

20mm Permanent Magnet Stepper Motor 2 phase 4 wire, 18° Stepping Angle, 0.08N.m Holding Torque 3

Type of Wire Connect

Motor input method with Pin type, FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

20mm Permanent Magnet Stepper Motor 2 phase 4 wire, 18° Stepping Angle, 0.08N.m Holding Torque 4

Product Detail Presentation

20mm Permanent Magnet Stepper Motor 2 phase 4 wire, 18° Stepping Angle, 0.08N.m Holding Torque 5

Packaging and Shipping information:

Samples are packed with foam sponge inside paper box.

For mass production, products are packed in paper carton.

For sea shipping (Mass production), cartons are packed on pallet.



Shipping time:

By express(DHL/ UPS/ Fedex/ TNT): 5~12 days

By 4PX express: 10~20 days

Sea shipping: 40~60 days (depends on different countries)



20mm Permanent Magnet Stepper Motor 2 phase 4 wire, 18° Stepping Angle, 0.08N.m Holding Torque 6
