18 Degree Step Angle Linear Stepper Motor CW/CCW Rotation VSM1065

Place of Origin Jiangsu, China (Mainland)
Brand Name VIC-TECH
Certification RoHS
Model Number VSM1065
Minimum Order Quantity 1Unit
Price $3~$8/Unit
Packaging Details Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit
Delivery Time 15-30 work days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000000 Units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Step Angle(degrees) 18 Degree Phase 2
Voltage 5 V Resistance 19 Ω±10%
Weight 5.5 G Rotation CW/CCW
Type Permanent Magnet Holding Torque 4.0 Gf.cm~5.0 Gf.cm
High Light

micro linear stepper motor

,

high torque stepper motor

Leave a Message
Product Description

VSM1065 10mm micro stepper motor 2 phase pm stepper motor for precision medical devices

VSM1065 is a special precious micro stepper motor (or say linear stepper motor)with a bracket and push,the moving speed can controlled by the precious micro stepper motor driving pulse frequency, the moving distance can be controlled by the precious micro stepper driving pulse number. for this typical motor, when motor driving 2-2 phase, 1 pulse make the slide move 0.02 mm. forthis type motor, the basic slide is a golden color unit as the photo show, also the slide can customization in any other material or shape.

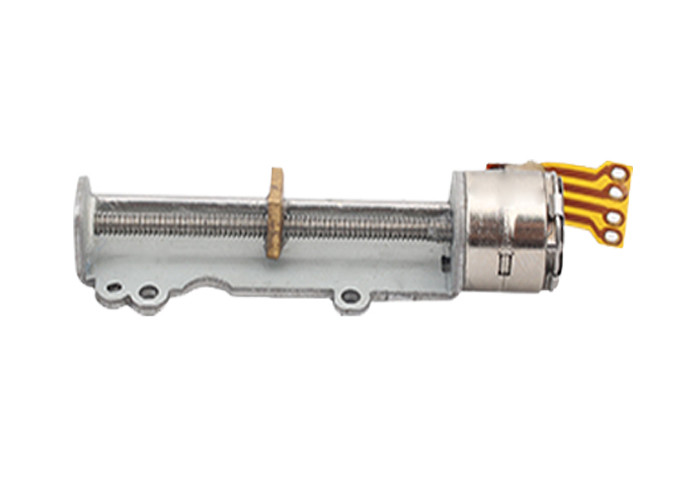

18 Degree Step Angle Linear Stepper Motor CW/CCW Rotation VSM1065 0



Mechanical Dimension:MM

18 Degree Step Angle Linear Stepper Motor CW/CCW Rotation VSM1065 1

Typical Applications

  • Intelligent Security Products

  • Camera Lenses

  • Door Locks

  • Wearable device



Specifications

Product Name 10 mm micro stepper motor
Model VSM1065
Rated Voltage 5.0 V
Current Per Phase  250 mA /phase
Coil Resistance 19 Ω±7%
No. Of phase 2  Phases
Step Angle 18 degree
Excitation Method 2 Phase Excitation
Drive Mode Bipolar Drive
Pull-In Torque 4.0 gf.cm At 480 pps
Pull-Out Torque 5.8  gf.cm At 480 pps
Max. Response Frequency 1100 pps,At 5.0 V DC
Max. Starting Frequency 1800 pps,At 5.0 V DC
Insulation Class Class E for Coils
Insulation Strength 300 V AC for One Second
Insulation Resistance 50 MΩ (DC 100 V)
Operating Temperature Range -20~+70 ℃
Weight 5.5 g(Ref.)
OEM & ODM SERVICE AVAILABLE



Competitive Advantage

  • High quality and the best price.
  • Fast deliver,storage company and rich inventory
  • Near Shanghai port, the traffic is very convenient.

Torque Curve For Reference

18 Degree Step Angle Linear Stepper Motor CW/CCW Rotation VSM1065 2

18 Degree Step Angle Linear Stepper Motor CW/CCW Rotation VSM1065 3

Type Of Wire Connect For Reference



Motor input method with Pin type, FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

18 Degree Step Angle Linear Stepper Motor CW/CCW Rotation VSM1065 4

Product Detail Presentation

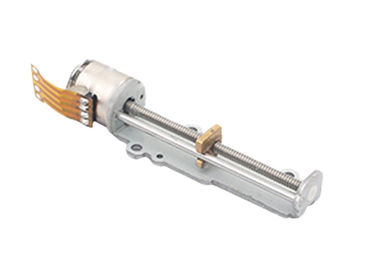

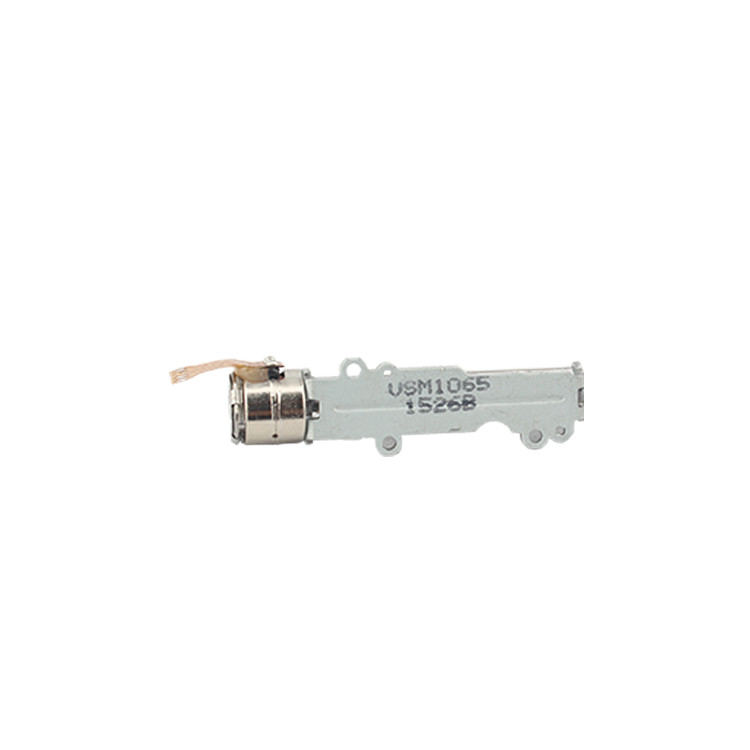

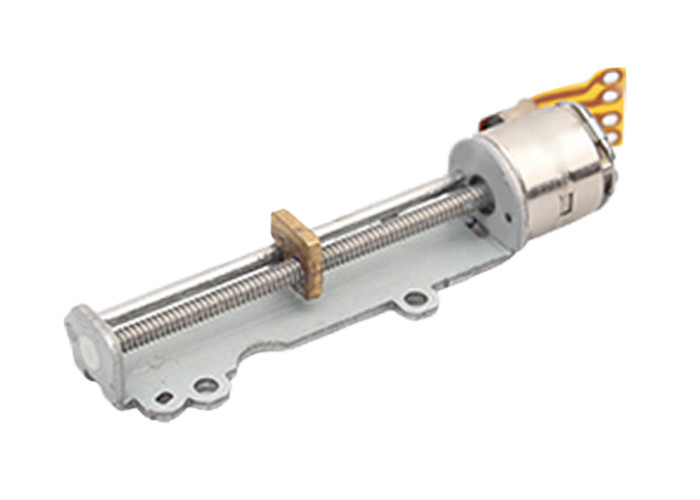

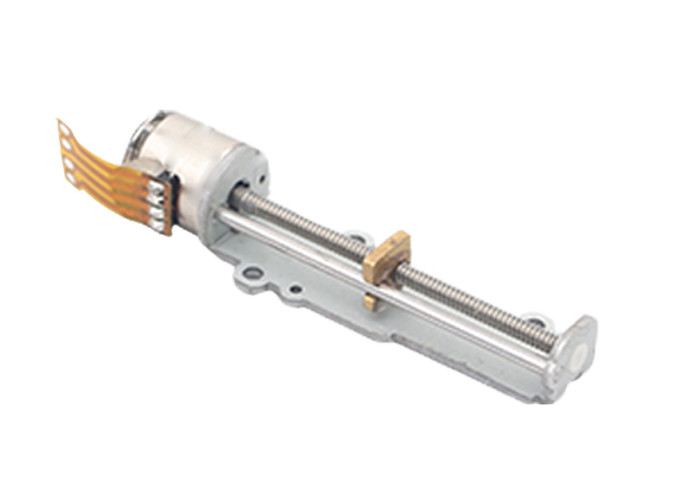

18 Degree Step Angle Linear Stepper Motor CW/CCW Rotation VSM1065 518 Degree Step Angle Linear Stepper Motor CW/CCW Rotation VSM1065 618 Degree Step Angle Linear Stepper Motor CW/CCW Rotation VSM1065 718 Degree Step Angle Linear Stepper Motor CW/CCW Rotation VSM1065 8
