5 V Weight 4 g 18 degree Step Angle Customized Industrial Micro Stepper Motor For Wearable Device
| Place of Origin | Jiangsu, China (Mainland) |
|---|---|
| Brand Name | VIC-TECH |
| Certification | RoHS |
| Model Number | VSM08248 |
| Minimum Order Quantity | 1Unit |
| Price | $3~$8/Unit |
| Packaging Details | Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit |
| Delivery Time | 15-30 work days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 1000000 Units/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Step Angle(degrees) | 18 Degree | Phase | 2 |
|---|---|---|---|
| Voltage | 5 V | Resistance | 16 Ω±10% |
| Weight | 4 G | Rotation | CW/CCW |
| Type | Permanent Magnet | ||
| High Light | micro planetary gear motor,high torque geared dc motor,Customized Micro Stepper Motor |
||
Product Description

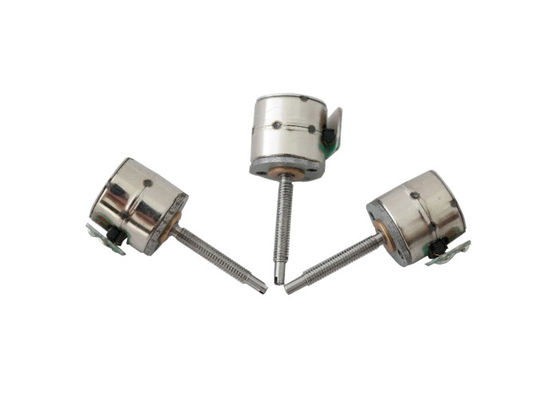

VSM08284 8mm micro stepper motor 2 phase pm stepper motor
VSM08248 is a precision lead screw motor ,the output shaft with a pitch of 0.4mm of the screw, through the screw and the screw rod supporting the turn of the screw into a thrust.
Motor basic step angle is 18 degrees, the motor running 20 steps every week, so the resolution of displacement can reach 0.02mm, to achieve the purpose of precision control.
Actuator aspects using subdivision drive way to meet.
Mechanical Dimension:MM
Technical Features
8mm micro stepper motor is a small type motor for precision instrument.
Application
Motor’s speed is determined by driving frequency, and it has nothing to do with load (unless it’s losing steps).
Due to high precision speed control of stepper motors, with a driver controlled stepping you can achieve very precise positioning and speed control. For this reason, stepper motors are the motor of choice for many precision motion control applications.
For linear stepper motors, they are widely used in:
Medical device
Camera equipment
Valve control system
Test instrument
3D printing
Textile machinery
Industrial control
Air conditioning
CNC machine
and so on
Specifications
| Product Name | 8mm micro stepper motor | |||
| Model | VSM08284 | |||
| Rated Voltage | 5 V | |||
| Current Per Phase | 300 mA /phase | |||
| Coil Resistance | 16 Ω±7% | |||
| No. Of phase | 2 Phases | |||
| Step Angle | 18 degree | |||
| Excitation Method | 2 Phase Excitation | |||
| Drive Mode | Bipolar Drive | |||
| Pull-In Torque | 2.8 gf.cm At 480 pps | |||
| Pull-Out Torque | 3.8 gf.cm At 480 pps | |||
| Max. Response Frequency | 800 pps,At 5V DC | |||
| Max. Starting Frequency | 2000 pps,At 5V DC | |||
| Insulation Class | Class E for Coils | |||
| Insulation Strength | 100 V AC for One Second | |||
| Insulation Resistance | 1 MΩ (DC 100 V) | |||
| Operating Temperature Range | -30~+70 ℃ | |||
| Weight | 4 g(Ref.) | |||
| OEM & ODM SERVICE | AVAILABLE | |||
Competitive Advantage
- High quality and the best price.
- Fast deliver,storage company and rich inventory
- Near Shanghai port, the traffic is very convenient.
Torque Curve For Reference
Type Of Wire Connect For Reference
Customization service
Motor’s design can be adjusted based on customer’s requirement including:
Motor’s diameter: we have 6mm, 8mm, 10mm, 15mm and 20 mm diameter motor
Coil resistance/ rated voltage: coil resistance is adjustable, and with higher resistance, motor’s rated voltage is higher.
Bracket design/ lead screw length: if customer want the bracket to be longer/short, with special design such as mounting holes, it’s adjustable.
PCB + cables + connector: PCB’s design, cable length and connector pitch are all adjustable, they can be replaced into FPC if customers require.
Type of Fixture Cover
The regular models are shown in the figure, and the special sizes can be customized.
