Two Phase 5V Slider Linear Stepper Motor OEM & ODM SERVICE Available VSM1068

Place of Origin Jiangsu, China (Mainland)
Brand Name VIC-TECH
Certification RoHS
Model Number VSM1068
Minimum Order Quantity 1Unit
Price $3~$8/Unit
Packaging Details Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit
Delivery Time 15-30 work days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000000 Units/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Step Angle(degrees) 18 Degree Phase 2
Voltage 5.0 V Resistance 55 Ω±10%
Weight 10g Rotation CW/CCW
Type Permanent Magnet
High Light

micro linear stepper motor

,

high torque stepper motor

Leave a Message
Product Description

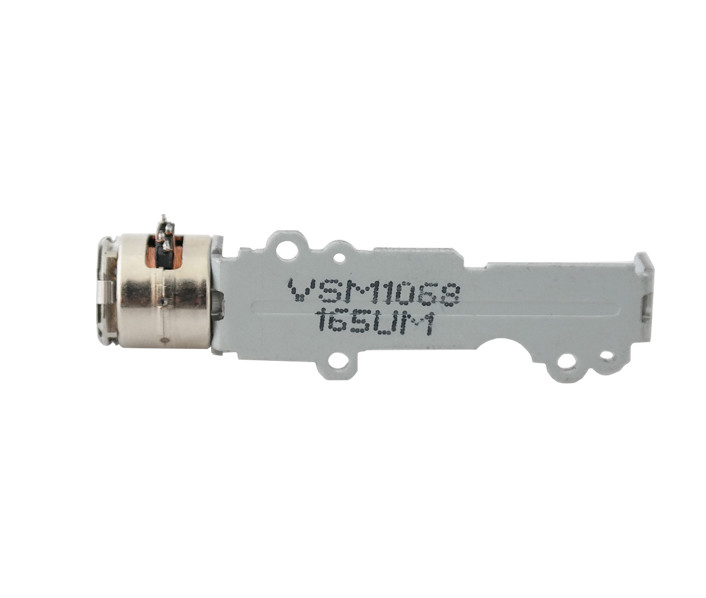

VSM1068 10mm micro stepper motor 2 phase 5V slider linear stepper motor screw motor

​VSM1068 is a special precious micro stepper motor (or say linear stepper motor),the moving speed can controlled by the precious micro stepper motor driving pulse frequency, the moving distance can be controlled by the precious micro stepper driving pulse number.

Two Phase 5V Slider Linear Stepper Motor OEM & ODM SERVICE Available VSM1068 0



Mechanical Dimension:MM

Two Phase 5V Slider Linear Stepper Motor OEM & ODM SERVICE Available VSM1068 1

Typical Applications

  • Intelligent Security Products

  • Camera Lenses

  • Door Locks

  • Wearable device



Specifications

Product Name 10mm micro stepper motor
Model VSM1068
Rated Voltage 5.0 V
Current Per Phase  100 mA /phase
Coil Resistance 50 Ω±7%
No. Of phase 2  Phases
Step Angle 18 degree
Excitation Method 2 Phase Excitation
Drive Mode Bipolar Drive
Pull-In Torque 2.0 gf.cm At 500 pps
Pull-Out Torque 2.2 gf.cm At 500 pps
Max. Response Frequency 1000 pps,At 5 V DC
Max. Starting Frequency 1800 pps,At 5 V DC
Insulation Class Class E for Coils
Insulation Strength 300 V AC for One Second
Insulation Resistance 50 MΩ (DC 100 V)
Operating Temperature Range -20~+70 ℃
Weight 10 g(Ref.)
OEM & ODM SERVICE AVAILABLE



Competitive Advantage

  • High quality and the best price.
  • Fast deliver,storage company and rich inventory
  • Near Shanghai port, the traffic is very convenient.

Torque Curve For Reference



Type Of Wire Connect For Reference



Motor input method with Pin type, FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

Two Phase 5V Slider Linear Stepper Motor OEM & ODM SERVICE Available VSM1068 2

Product Detail Presentation

Two Phase 5V Slider Linear Stepper Motor OEM & ODM SERVICE Available VSM1068 3
Two Phase 5V Slider Linear Stepper Motor OEM & ODM SERVICE Available VSM1068 4Two Phase 5V Slider Linear Stepper Motor OEM & ODM SERVICE Available VSM1068 5Two Phase 5V Slider Linear Stepper Motor OEM & ODM SERVICE Available VSM1068 6Two Phase 5V Slider Linear Stepper Motor OEM & ODM SERVICE Available VSM1068 7
